IEC61850 for Department of Power Supply in HsinTao(ZHONG DA DS Substation)


IEC61850 Power SCADA and IEC Revamping Upgrade


Department of Power Supply in HsinTao

ZHONG DA DS Substation

IEC61850 Power SCADA
IED Revamping Upgrade

Taiwan - East Asia
DS High Voltage
Customer Taiwan Power Company (Department of Power Supply in HsinTao)
Project start September 2018
Project completion May 2019
Products involved SCADA System: ABB microSCADA (Redundant system)
Gateway System: ABB microSCADA (Redundant system)
IED(PMCC): Siemens AG 7SJ82*36 units
IED(MCC): Siemens AG 7SJ82*14 units
Advance Central Control System: iGrid iControl

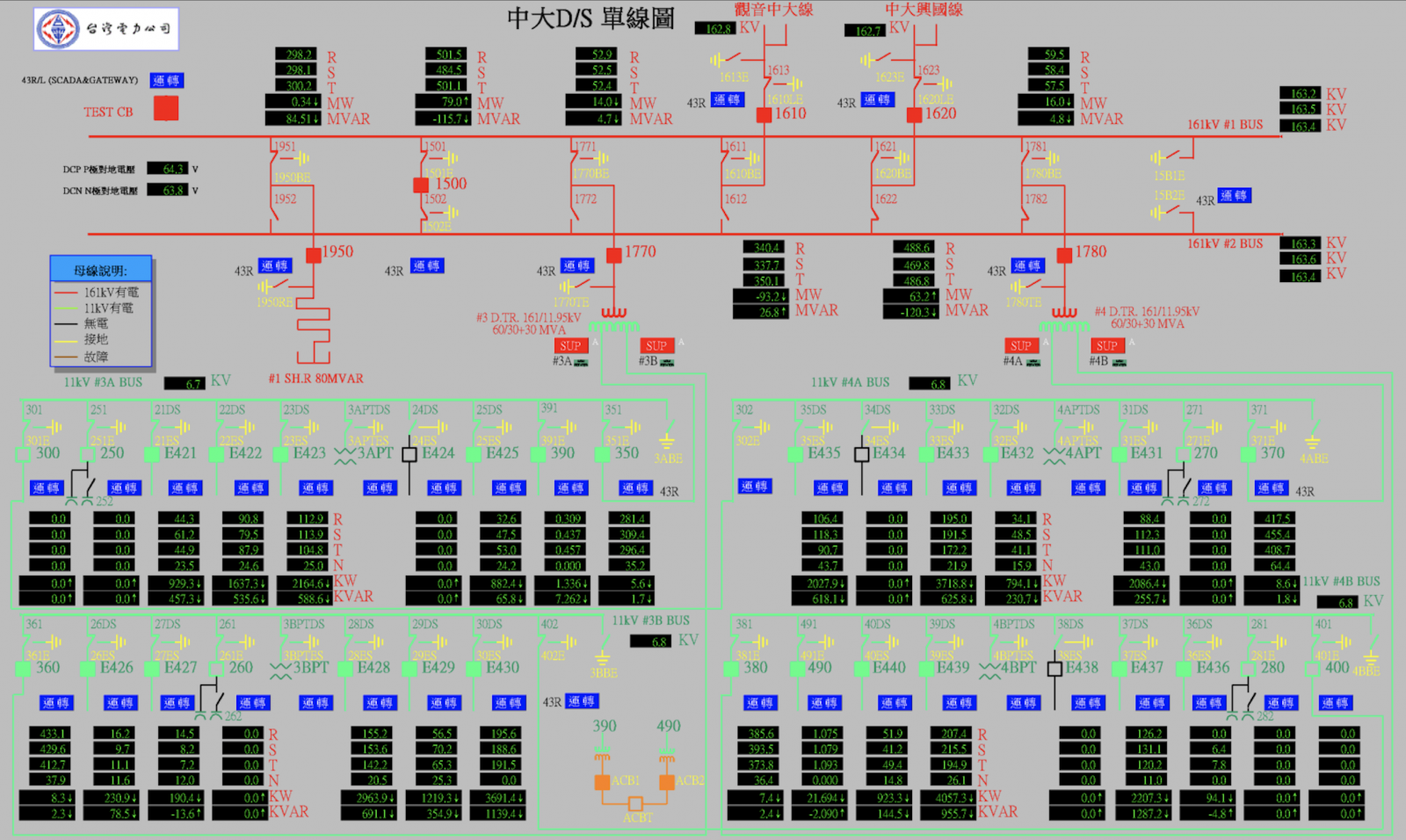

Number of data points Up to 2,500 I/O points
Protocols DNP 3.0, IEC61850, IEEE1588

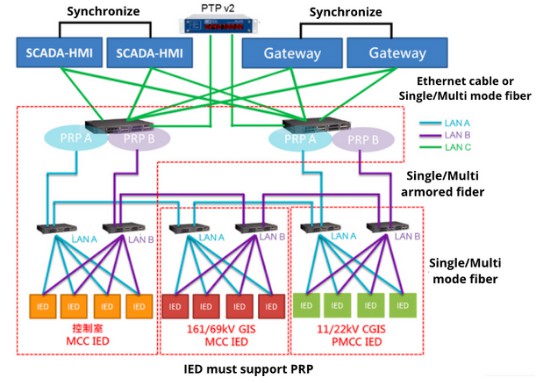

System structure PRP

Description of the project

Taiwan Power Company (TPC) was established on May 1st, 1946. It is a comprehensive power company covering with power generation, transmission, distribution and sales. It is the only electricity company that sell power in Taiwan. All electric power produced by private power plants and the cogeneration of gas and electricity must be sell to TPC, and TPC will resell to users.

This project was the first IEC61850 project in the substation released by TPC, and HCE is the first company to complete the IEC61850 project. This project began in September 2018, and applied SCADA System: ABB microSCADA (Redundant system), Gateway System: ABB microSCADA (Redundant system), 36 units of IED(PMCC):Siemens AG 7SJ82, and 14 units of IED(MCC):Siemens AG 7SJ82.The project used IEC61850 system structure in the bay level and use DNP 3.0 transmit to the control center. There are total 6 control centers for this project.
