HCE most recents inputs into the reference meters market borns from well know needs and limitations by our own experience developing and continuously improving metering and monitoring equipment along the years Electric Panels located in substation and diverse industrial applications. Mainly contains the following: Measurement elements, control switches, signalling and secondary protection (over-current, differential, etc.)
1. Maintenance services base in the installation requirements for the well functioning of the grid.
2. Technical researches and investigation for read patterns that generate issues that may affect the installation and aim for avoid to face them lately. Requested under the highest level of standard as could be for the Electric generation and distribution area.

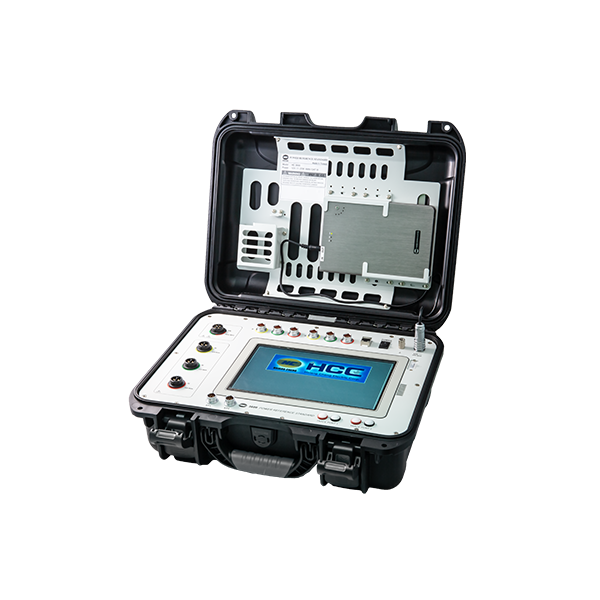

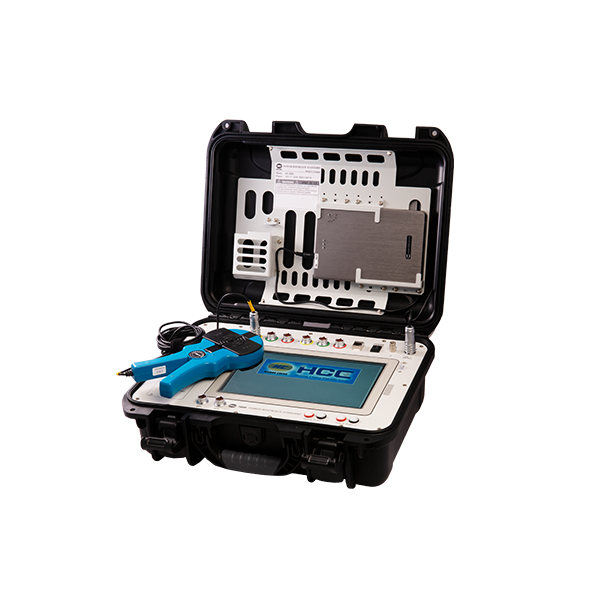

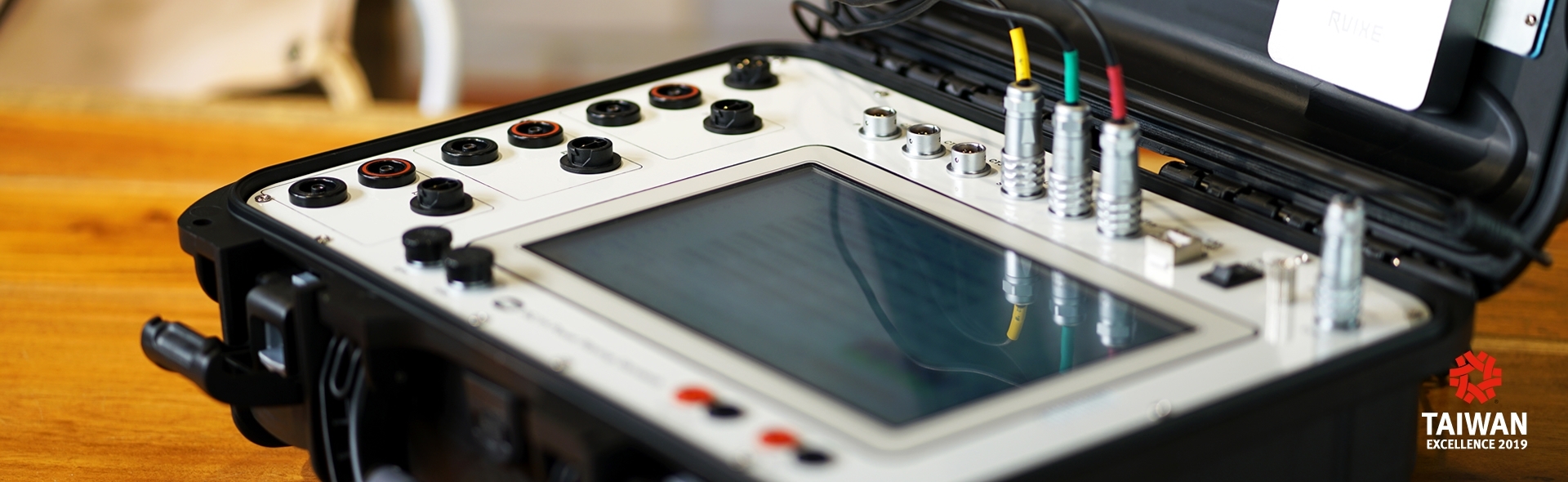

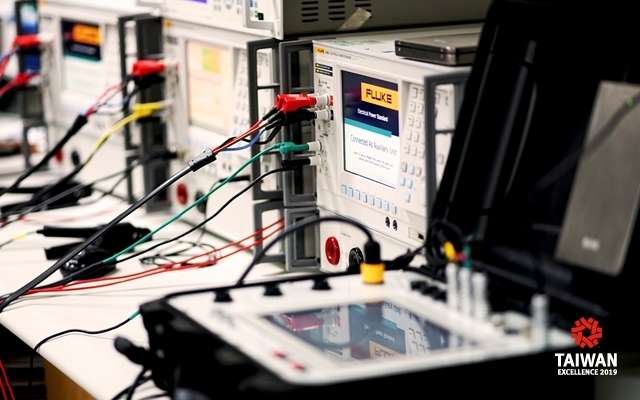

HC3600 not only answer a concrete need, it’s versatility, high accuracy, performance and stability over continuous use in many diverse applications do more than just empower the professional fulfilling the current technician and engineers needs, it opens to the user a much more wide catalog of applications and business opportunities that before simply wasn’t possible to meet the standard.
1. Maintenance services base in the installation requirements for the well functioning of the grid.
2. Technical researches and investigation for read patterns that generate issues that may affect the installation and aim for avoid to face them lately. Requested under the highest level of standard as could be for the Electric generation and distribution area.
HC3600 not only answer a concrete need, it’s versatility, high accuracy, performance and stability over continuous use in many diverse applications do more than just empower the professional fulfilling the current technician and engineers needs, it opens to the user a much more wide catalog of applications and business opportunities that before simply wasn’t possible to meet the standard.
- Precision with auto range measurement
- Voltages : 0.01% reading
- Currents 0.01% reading
- Powers and energies
- Current direct 0.02% reading
- Clamp (CTΦ8S) 0.05% reading

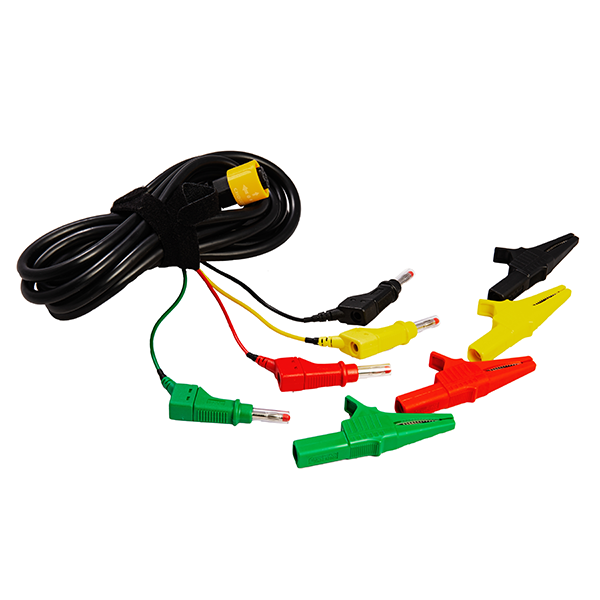

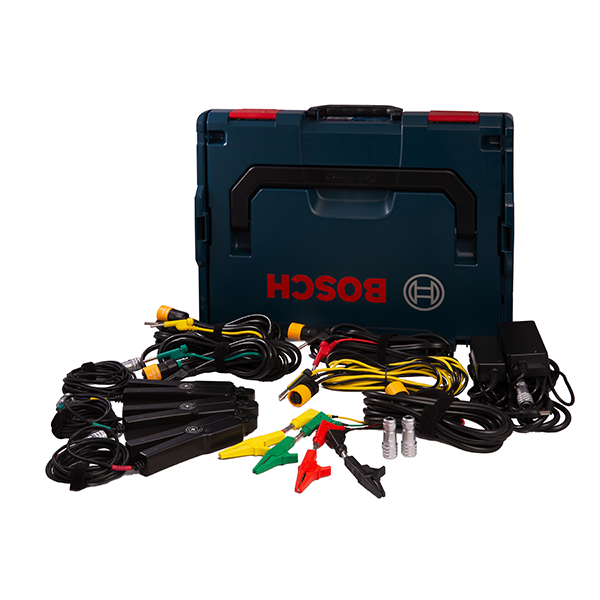

- Standard current inputs:
- Direct in 0.001-12A
- Clamp CTΦ8S 0.01A-12A
- Optional current inputs:
- Clamp CTΦ20P 10mA-200A
- Clamp CTΦ50P 10-1000A
- Rogowski coil 20-3000A
- Field test can be powered by power bank
- Fast trace port calibration assuring long-term stability
- Power qualities analysis
- Real –fundamental-distorted power energy measurements
- Power harmonic analysis 1-100 th
- CT Ratio and CT PT burden Tests
- Potable IP67 water protective enclosure
- IPC 10” Display with Touch-screen
- 2 Years warranty
Standard Inputs
| Model | 3600 | |||
|---|---|---|---|---|
| Input Mode | Direct | Clamp CTΦ8S(2)(5) | ||
| Uncertainty | Range | Uncertainty | Range | |
| Frequency | 60ppm | 45-65Hz | ||
| Voltage | 100ppm | 30-500V | ||
| 100ppm(4) | 1-30V | |||
| Currents | 100ppm | 0.05-12A | 500ppm | 0.1-12A |
| 100ppm(4) | 0.01-0.05A | 500ppm(4) | 0.02-0.1A | |
| Powers-energies | 30-500V | 30-500V | ||
| 150ppm±0.0015° | 0.06-12A | 500ppm±0.005° | 0.1-12A | |
| 150ppm(4) ±0.002° | 0.02-0.06A | 500ppm(4) ±0.005° | 0.02-0.1A | |
| PF-Phase angle | 0.003° | 0.05-12A | 0.01° | 0.1-12A |
Optional inputs
| Clamps(2)(5) | CTΦ20P | CTΦ50P | ||
|---|---|---|---|---|
| Uncertainty | Range | Uncertainty | Range | |
| Currents | 0.2% | 2-200A | 0.3% | 30-1000A |
| 0.2%(4) | 0.1-1A | 0.3%(4) | 10-30A | |
| Powers-Energies | 0.2% ±0.05° | 2-200A | 0.3% ±0.07° | 50-1000A |
| 0.2% ±0.05°(4) | 0.5-2A | 0.3% ±0.07°(4) | 10-50A | |
| PF-Phase angle | ±0.05° | 2-200A | ±0.07° | 50-1000A |
| Rogowski coil(5)(9) | RC3000 | ||
|---|---|---|---|
| Uncertainty | Range | Center position | |
| Current | 0.6-1.2% | 50-3000A | 30-50mm C.P |
| Powers-Energies | 0.6-1.2% ±0.05° | 50-3000A | 30-50mm C.P |
| PF-Phase angle | >50A | ±0.05° | |
| Wireless CT | HV Clip-on CT (Three range options)Botton position | |||
|---|---|---|---|---|
| Uncertainty FS | HV 1200A | HV 600A | HV 50A | |
| Current | 1% | 50-240A | 20-240A | 1-50A |
| 2% | 240-400A | 240-400A | ||
| 3% | 400-1200A | 400-600A | ||
| PF-Phase angle | >measure range | ±1.5° | ||
Stability
| Temperature (-10-40°C) | Direct | Clamps |
|---|---|---|
| V-I | 3ppm /°C | 5ppm /°C |
| P-E | 6ppm / °C | 12ppm / °C |
| Drifts/year | Direct | |
| Fast calibration/3month | ||
| V-I | 20ppm/year | |
| P-E | 40ppm/year | |
| No calibration | ||
| V-I | 40ppm/year | |
| P-E | 80ppm/year |
Notes
(1)Safety operation ground (FG) essentially required
(2) CT measurement under proper space compensators
(3)Pf range P for cosø and Q for sinø
(4) Relative uncertainty versus final value of test range
(5) No external magnetic and electrical field
(6)CTΦ8S precision measurement referring F1 page
(7) CTΦ8S probe versus S side connectors and CTΦ20P/ CTΦ50P probe versus P side connectors
(8)In integrating conversion Q QE only for fundamental and in standard FFT mode Q QE for real power conversion
(9)Rogowski coil test only for fundamental in integrating mode and in standard FFT mode Q QE for real power conversion
- Certifications
- CE(IEC 61326-1), IP67, IEC 60068-2-6, IEC 60068-2-27, IEC 61010-1*, M567867, M567868
