The project monitoring plan for substation can be configurated by demand from job-site as list below:
1. Centrail style RTU (R2K RTU)
2. Distribution style DTU (DTU-2000/2300 series)
3. IED, such as protection reley GE F65, SEL-351, ABB REF620 and etc.
The user can choose the comunication port such as RS-232/485, fiber, internet and etc.
Also, the protocol can be used like DNP3.0 Serial, LAN, IEC870-5-101/104, Modbus, IEC61850 and etc to integrate to the SCADA or control center SCADA. The purpose is to obtain data (status, alarm and power measurement (voltage, current, frequency, P, Q and KWH)) from job-site of power equipment. With these data, user can acquire the event message, alarms, reports, trend chart, and display of SCADA with graph separately for a customized power monitoring system solution with flexibility and redundancy structure for expansion.

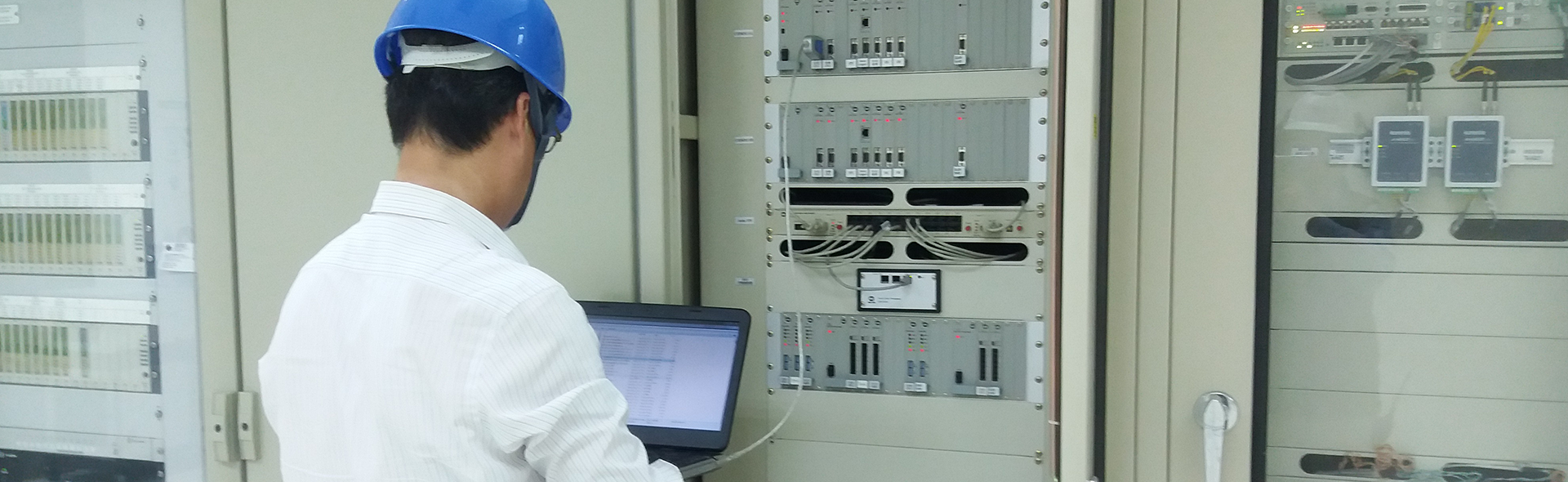

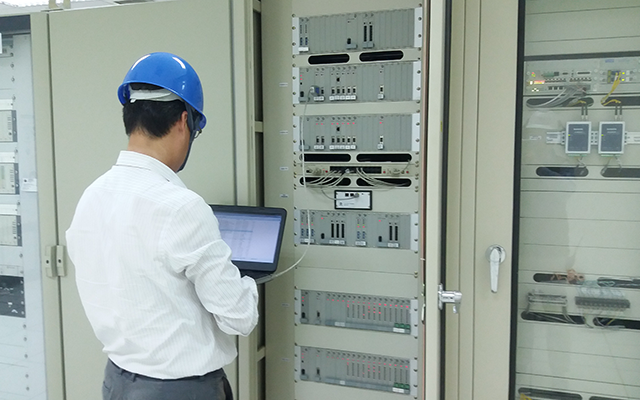

HCE offers a completed solution with installation and commission, testing, a friendly user manual, training and after-sales service for power monitoring. Also, our product meets the design of panel to make our total solution to be complied with the highest technology nowaday.
