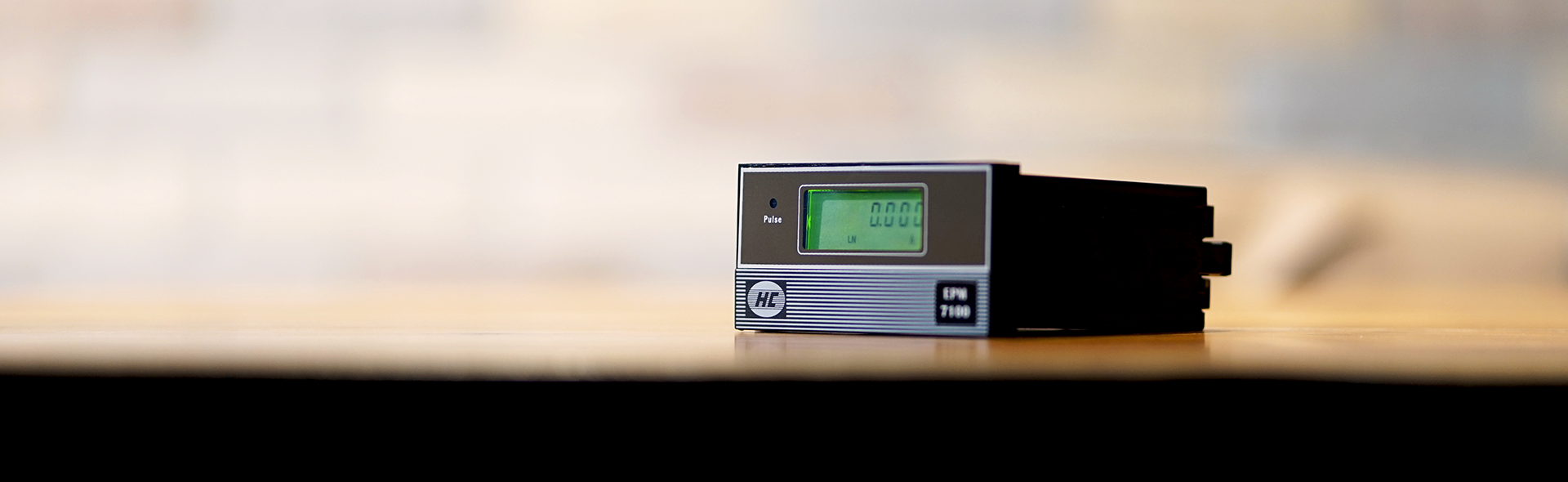

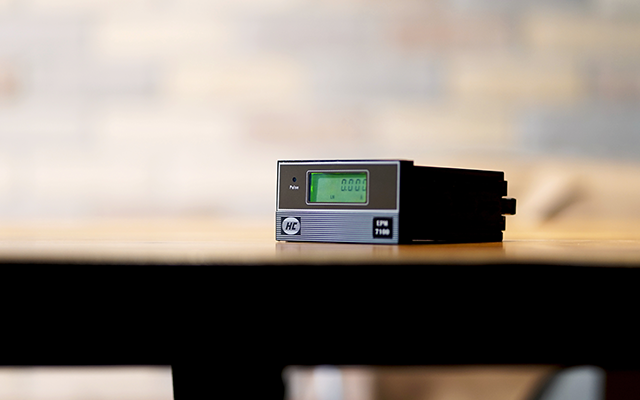

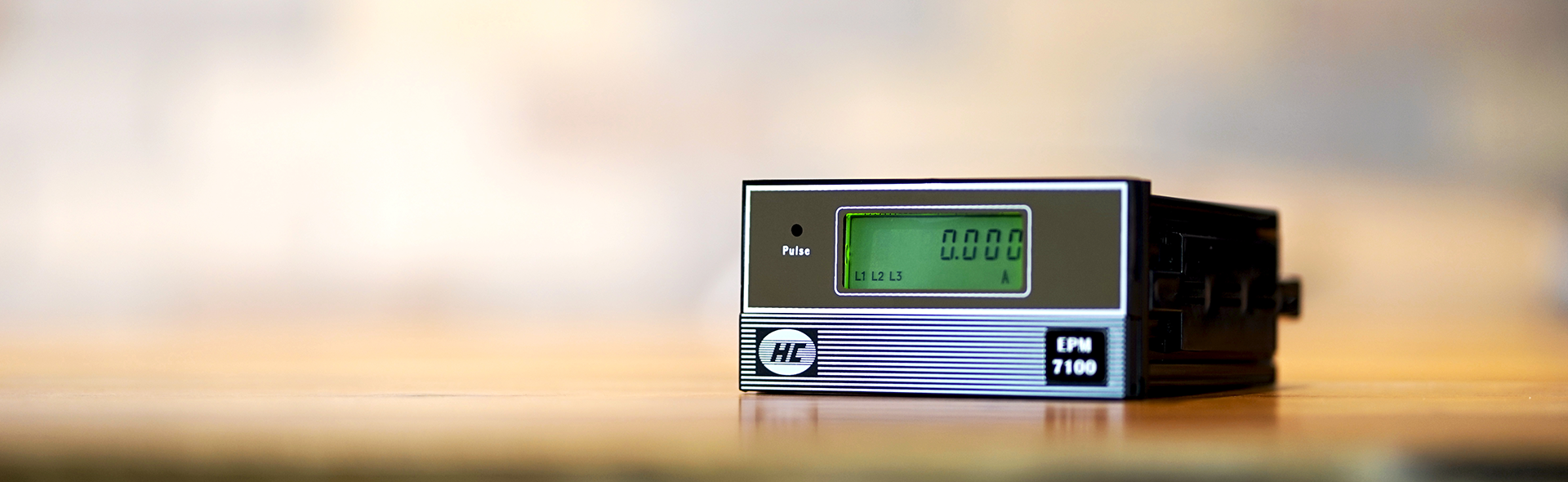

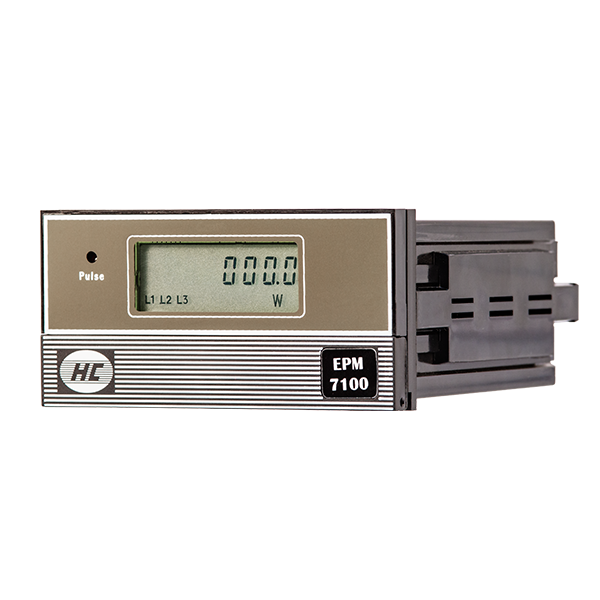

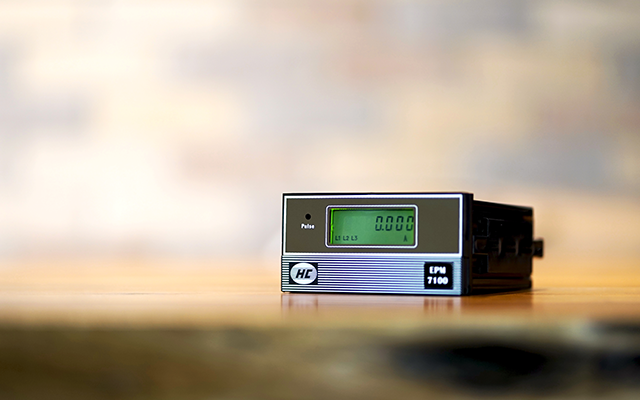

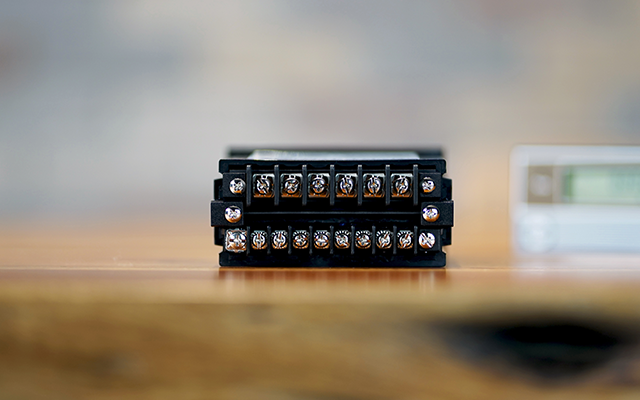

EPM7100

Download Add Inquiry

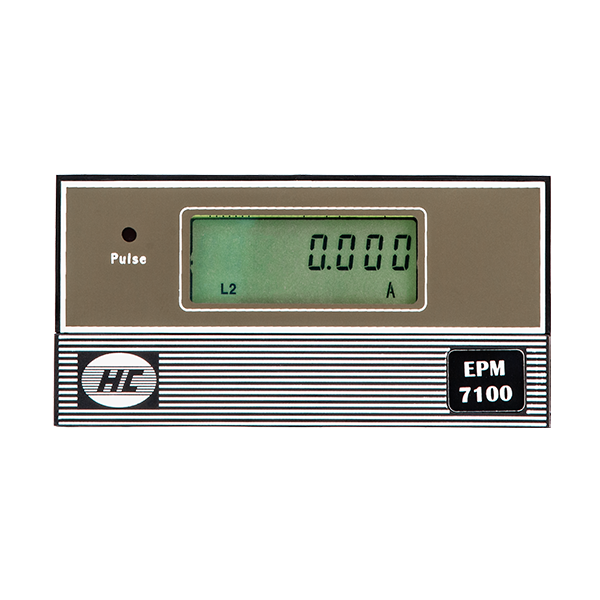

The EPM7100 with built-in with features such as overload capabilities, accuracy level up to 0,2% ( we support readjustment for accuracy level meeting project needs), long term stability, readout dependability etc. It aims to offer a competitive and robust solution that meet the required target offering great improvement of traditional digital meters, the power meter EPM 7100 also feature a LCD screen with “8” digitals readouts.
The display of parameters can be manually selected by EPM 7100 PCTool, or automatically prioritize the sequentially view within 20 parameters, is equipped with a serial port RS-485allowing connections to an open architecture computerized network, running on PC or data acquisition system and complying with Modbus® protocol.
EPM7100 provides a simple yet practical solution to energy management in factories and plant, small industries, building services, etc.

Compatible for DIN&ANSI cutout
2KV RMS input / power isolation

Supports readjustment for accuracy level meeting project needs, with its competitive price and robust solution, the EPM7100 is a great device to energy management in factories and plant, small industries, building services, etc.

Features

Modbus® RTU protocol
Maximum 580V
True RMS conversion
LCD display
Field programmable PT / CT ratio
Accuracy up to 0.2% " "Memory for all setup and energy data
Comprehensive self test diagnostics
Low input burden 0.2VA (5A/120V)
Wide power supply range 80~260V AC / DC
Compact physical configuration

Accuracy

0.2%fs / 0.5%fs for V x 3
0.2%fs / 0.5%fs for A x 3
0.25%fs / 0.5%fs for Watts
0.25%fs / 0.5%fs for Vars
0.25%fs / 0.5%fs for VA
0.25%fs* / 0.5%fs* for PF
0.4%rd* / 0.8%rd* for WH
0.5%rd* / 1%rd* for VarH
0.5%fs for IO(AO)
0.05%rd for Hz
* Accuracy performance range for WH/VarH/PF, Cosθ : 1-0.5 for WH/PF, Sinθ : 1-0.5 for VarH, Voltage≧75V, Current≧10% of rating
