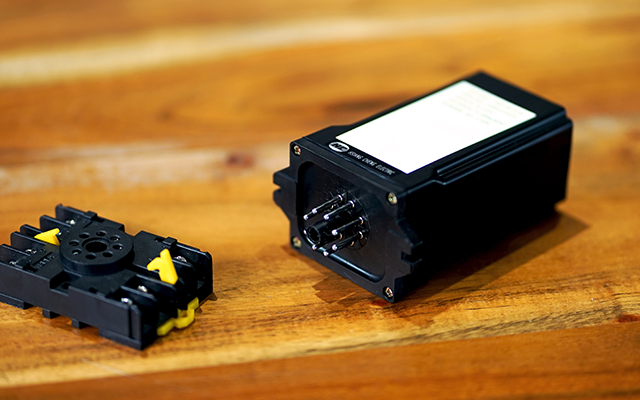

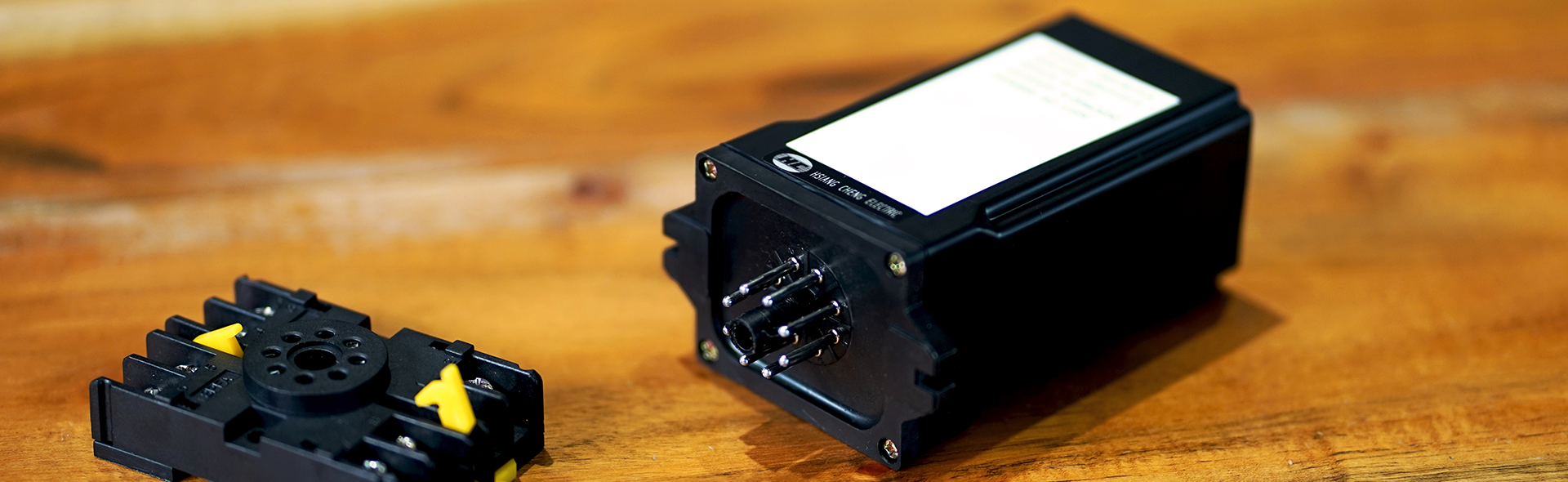

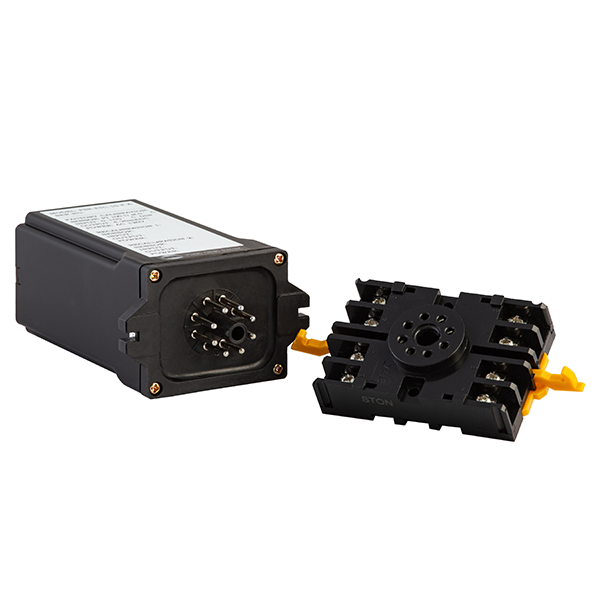

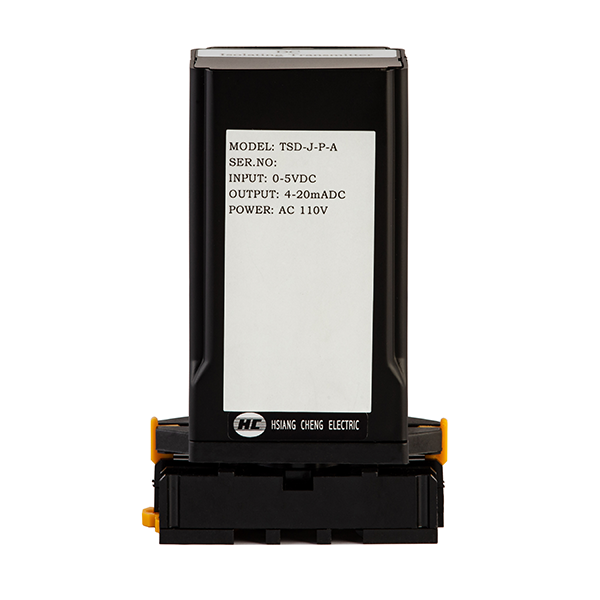

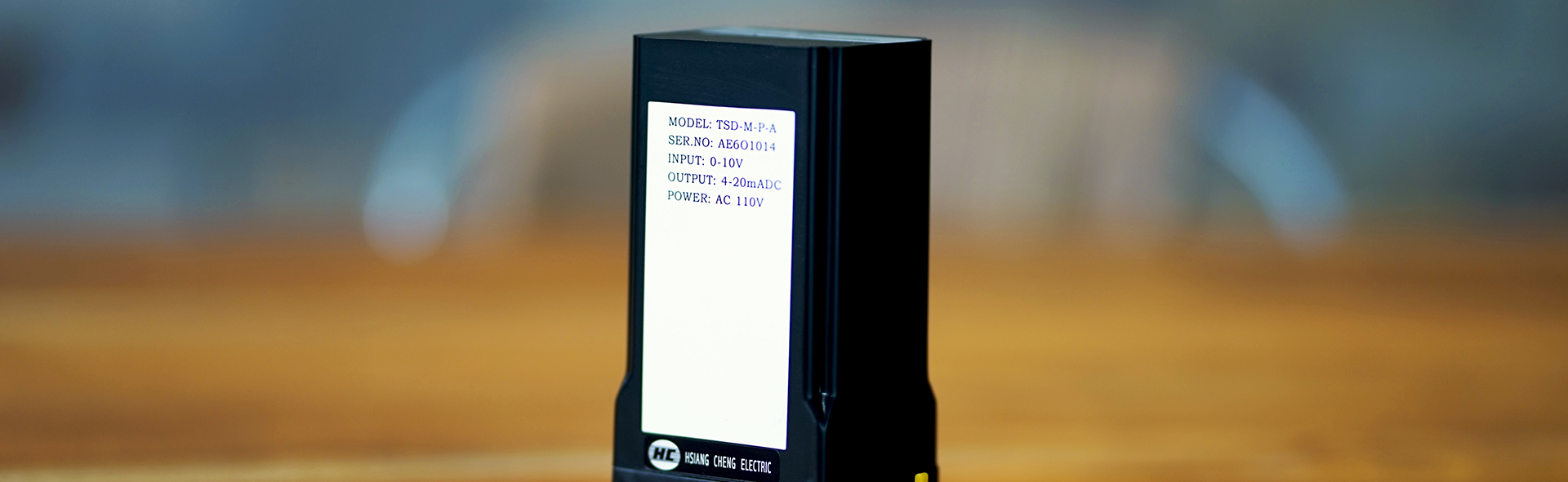

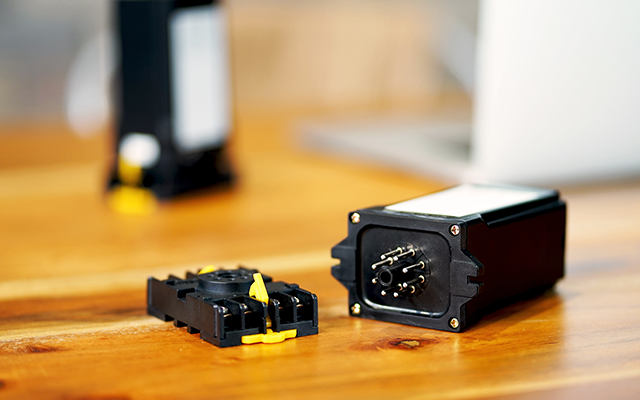

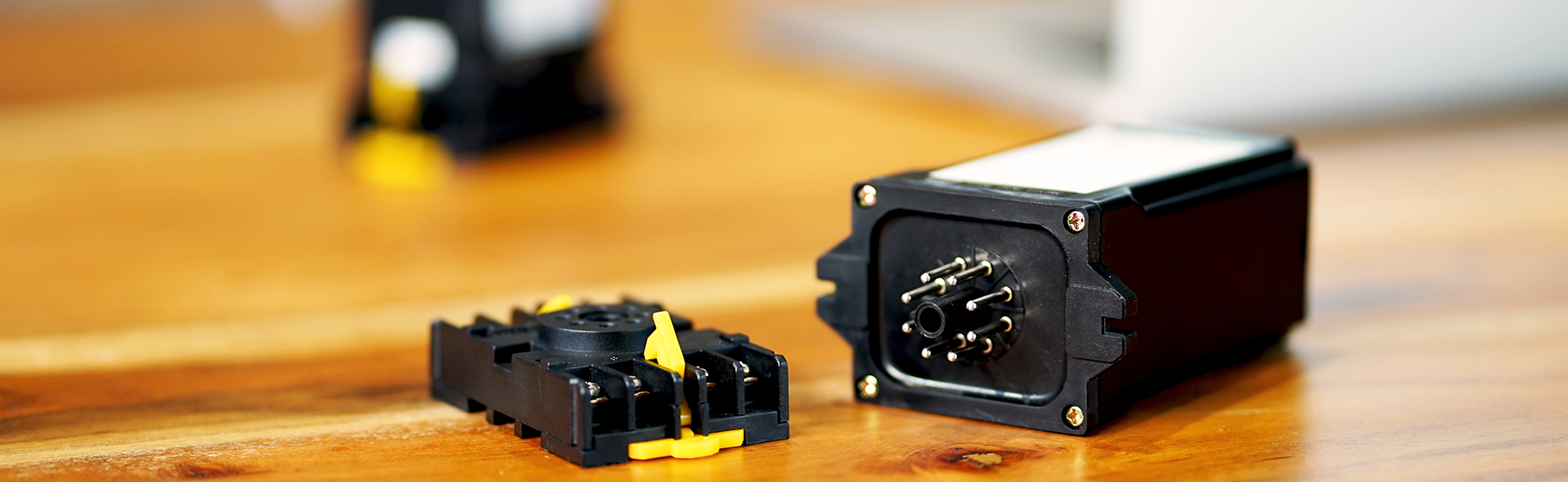

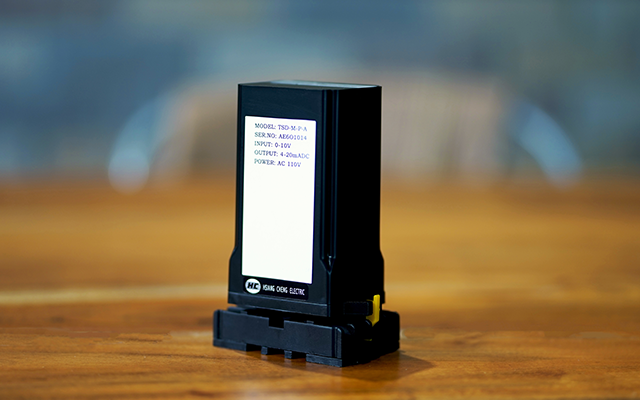

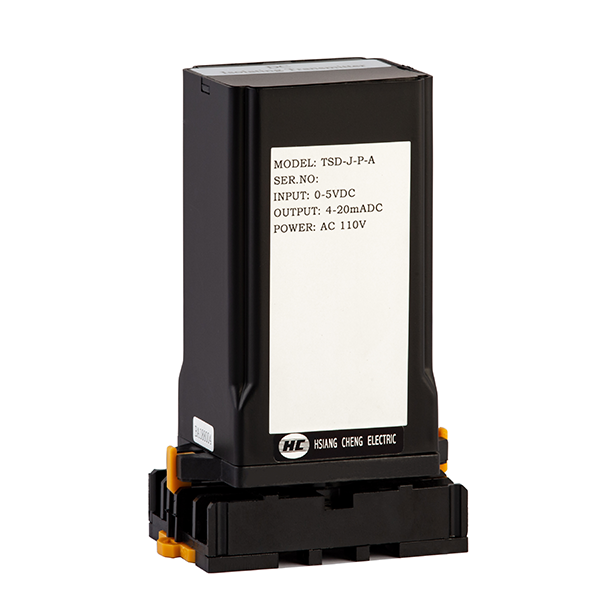

TSD is the DC signal isolation transmitter, design of the socket plus-in type with barrier terminals, provide a reliable and stable wide signal conversion.
Wide input ranges selection, 1mV to 200V / 50uA to 50 mA, Wide output ranges selection
Accuracy 0.2%
Input/output isolation 1.6KV DC
Accuracy ( 23 ± 3℃ ) : 0.2% ro
Linearty & repeatability : 0.05% typical
Temperature stability : < 0.01% ro per degree C
Input resistance - OHM :
> 100MΩ.....< 2V ranges
> 500KΩ..... > 2V ranges
< 20Ω..... for all current input ranges
Maximum input over :
< 300Vrms continuous ... > 2V ranges
< 150V rms continuous ... ≦ 2V ranges
< 150mA continuous for current input
Power effect < 0.003% for per volt change
Response time & ripple : 250ms typically , ripple < 0.1% rms ro
Common mode rejection : 120db, DC to 60Hz
Dielectric strength :
1500Vac ..... power / input & output terminals
1600Vdc ..... input / output terminals
Output drive capability : ≦10 mA for voltage modes , ≦10V for current mode
Operating condition : Temperature range -5 ~ 55℃, humidity 20~95% RH non - condensed
Storage condition : Temperature range -10 ~ 70℃, humidity 20~95% RH non - condensed
Power supply :
± 20% of rated , less 3.5 VA for AC input
± 20% of rated , less 3.5 watt for DC input
Construction : Socket plug - in type with barrier terminals
