HC FP series transducer are a family of metal case transducer for Measuring and conversion of IEC 688 / 1992 - 04, set in a Wall Mount.

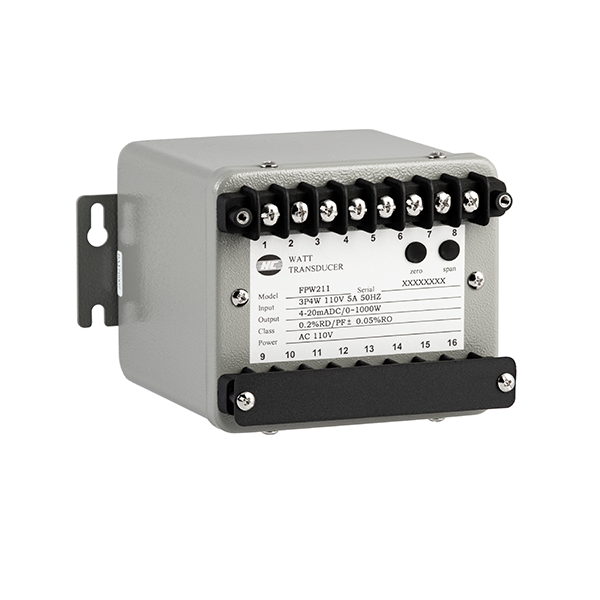

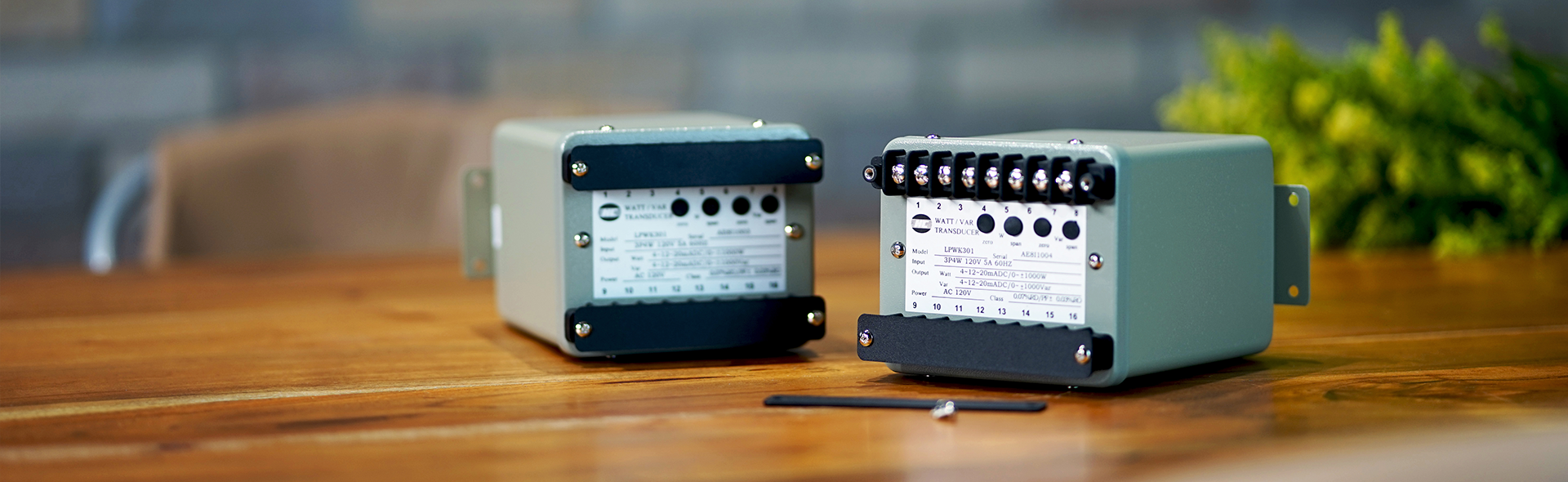

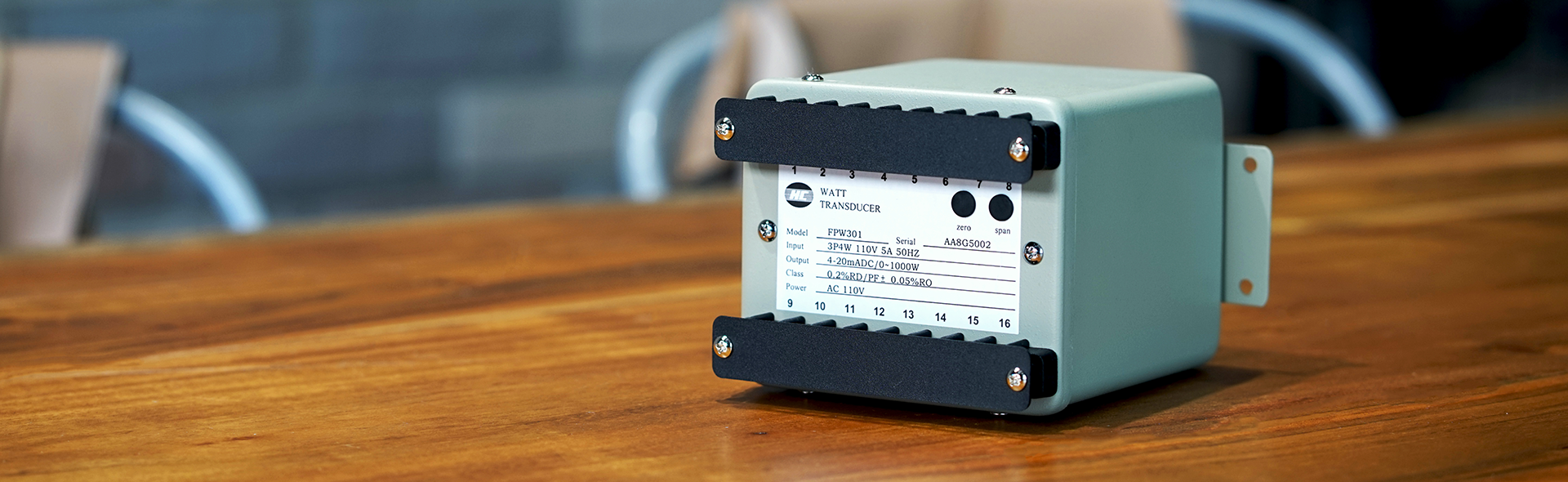

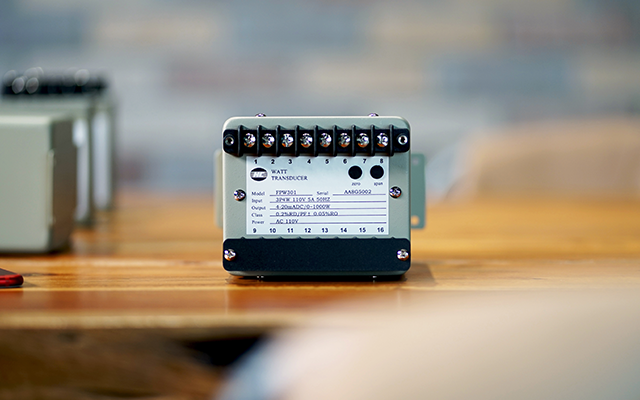

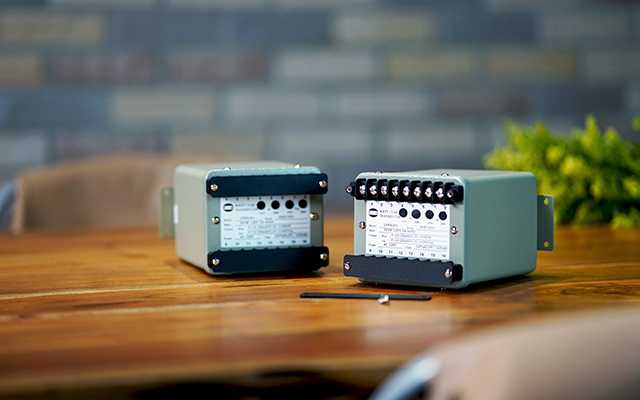

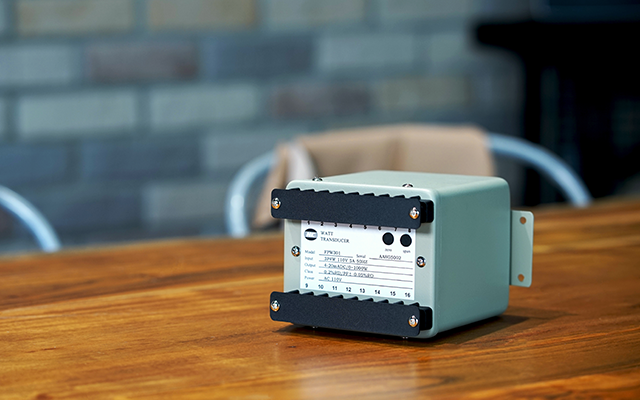

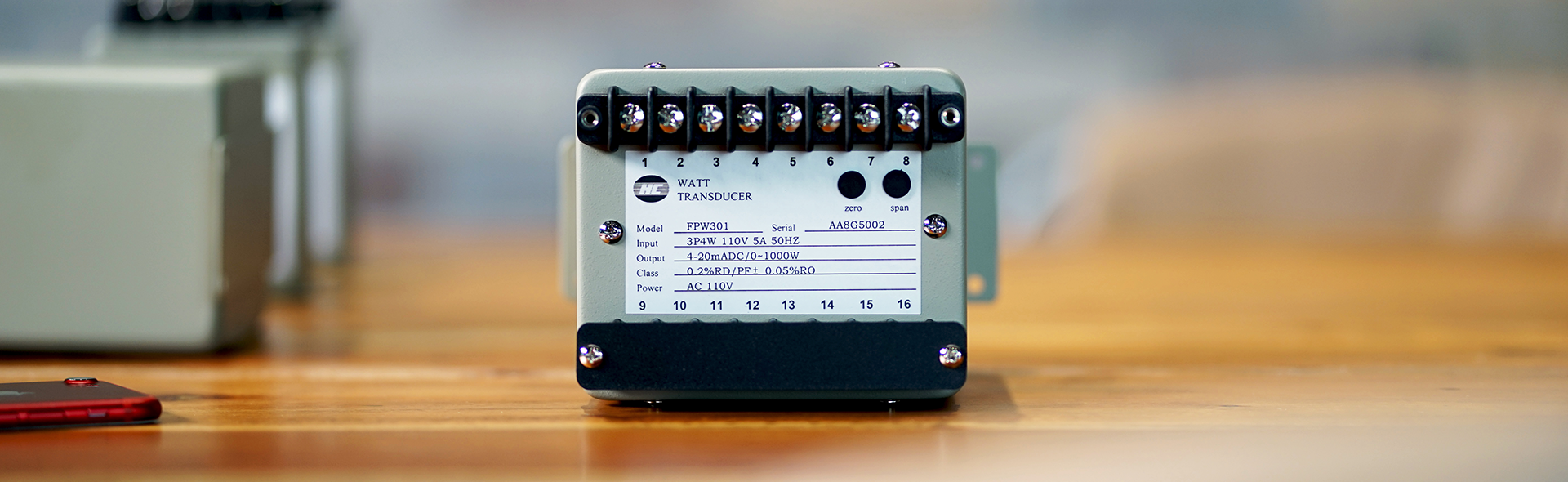

FPW211 is the three phase four wires 2.5 elements unbalance active power (WATT) transducer with one output.
FPW211 is the three phase four wires 2.5 elements unbalance active power (WATT) transducer with one output.
- Accuracy ( 23 ± 3 °C ) : 0.2% reading / PF ± 0.05% RO
- Maximum output load :
- DC current mode : maximum 10V drop
- DC voltage mode : maximum 5mA drive
- Dielectric strength : AC 2KV 1 minute between terminals; AC 2.6KV 1 minute / terminals to case
- Surge and impulse test : ANSI C37.90 / 1989, IEC 255-3 (1989) 4 KV 1.2 * 50 us
- Maximum input over :
- Current related input Voltage related input
- 1A / 5A 10A
- 4 x rated / continuous 2 x rated / continuous 1.5 x rated / continuous
- 10 x rated / 10 seconds 25 x rated / 1 second 2 x rated / 10 seconds
- 50 x rated / 1 second 50 x rated / 0.5 second
- 80 x rated / 0.5 second
- Input burden : Current less 0.2 VA; voltage less 0.1 VA
- Response time & ripple : <400 ms for step change 0-99% ; ripple less 0.5% ro peak to peak
- Frequency : 50 ± 2 Hz ; 60 ± 2 Hz ; 400 ± 5 Hz
- Waveform : Watt - 2% 3rd
- Stability :
- Temperature range ( 20 to 26°C ), long term stability / year
- Maximum 60 ppm / °C , less 0.2% draft / year typically
- Storage condition : Temperature range -25 to 70°C, RH 20 to 95% non condensed
- Operating condition : Temperature range -20 to 65°C, RH 0 to 99% non condensed
- Magnetic field effect : < 0.01% under 100 ampere turns at 1M center
- Power dissipation : < 3.5 VA
Certifications
- CE
