Power Transducer

RPPF200

Download Add Inquiry

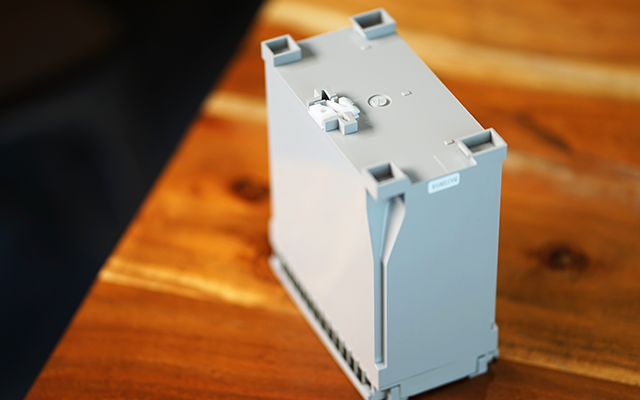

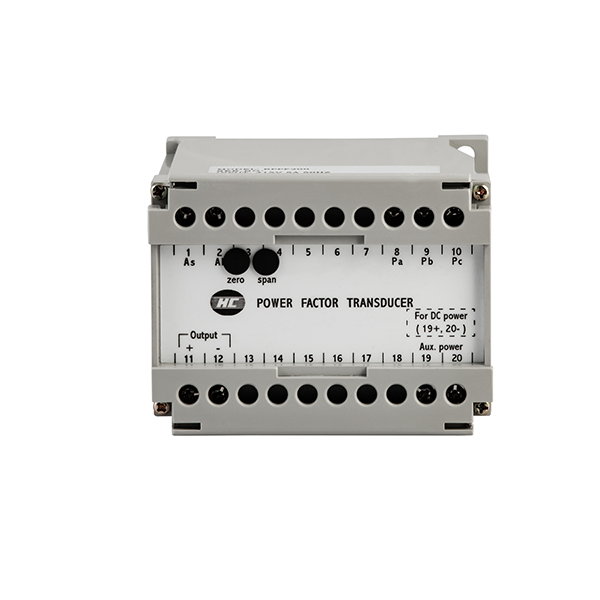

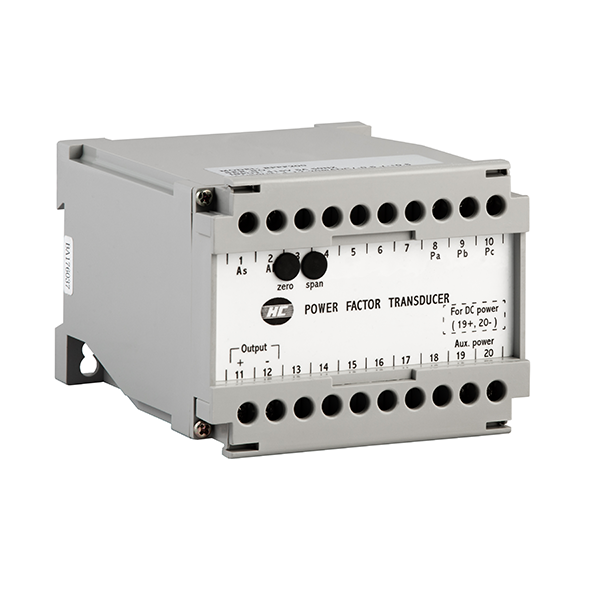

RPPF200 is the three phase electricity power factor transducer, and it can use the less configuration to perform the value transferring via the balance system. Its dimension is 70.3 x 100 x 115.5 mm. The installation of RPPF200 conforms to DIN-EN 50022/BS5584 Rail Fixing.

RPA conforms to the design of the IEC 688 transducer, which can resist the invasion of the surge and the dielectric protection of the case, and provide a reliable and stable signal conversion.
  • The RP series are DIN-case electrical power transducers designed for thegeneral industries  applications.
  • Manufactured to strict compliance IEC 688.
  • The input & output parameters are per-selected from a wide range of industries' compatible signals and other non-stated ranges are available on request or as options.
  • Well-proven applied circuitries fully ensuring long term stability.
  • DIN case in small size of space saving.
  • Protective touch-proof terminals and enclosure meeting requirements of VBG4 & VDE 0106 part 100 (Germany).
  • High performance & stability of less than 100 ppm drift per ºC change
  • High impulse & surge protection of up to 5KV (RMS) meeting IEC 255-4

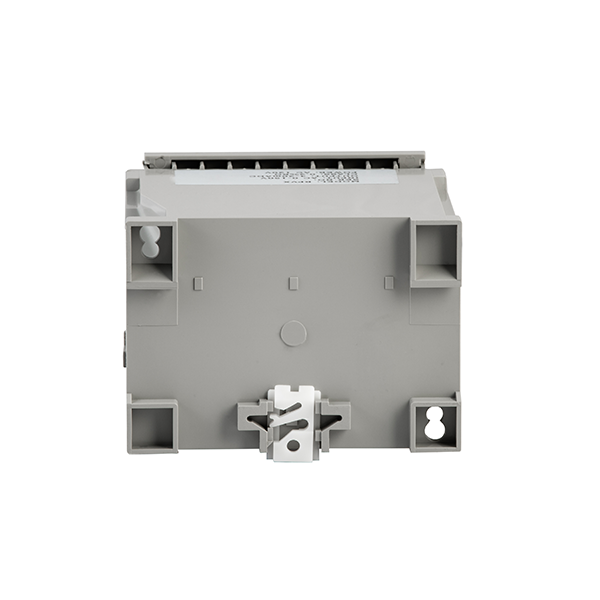

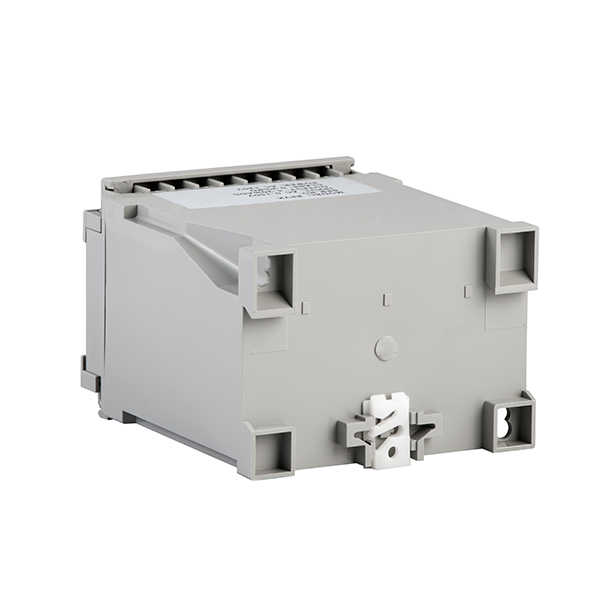

  • Commonly for DIN rail-mounting
  • Accuracy ( 23 ± 5 ºC ) : 0.2% ro + 0.3ºC
  • Stability : Maximum 100ppm/ºC , less than 0.2% drift per year typically
  • Input burden : Current less 0.3 VA; voltage 0.2VA typically
  • Frequency : 50 ± 2 Hz ; 60 ± 2 Hz
  • Maximum input over :
    • Current related input : 2 x rated continuous, 10 x rated 10 sec, 25 x rated 2 sec, 50 x rated 1 sec
    • Voltage related input : maximum 2 x rated continuous ( 120V / 240V ), maximum 1.5 x rated continuous ( 415V )
  • Output load :
    • DC current mode : maximum 10V drop
    • DC voltage mode : maximum 5mA drive
  • Response time & ripple < 400ms for step change 0-95%, ripple less than 0.5% ro peak-peak
  • Magnetic effect < 0.05% change 1M center 100 amp per turn, synchronized with line frequency
  • Aux. power effect < 0.005% for per voltage change
  • Dielectric strength :
    • 4KV AC rms 1 minute between terminals to case;  IEC 688
    • 2KV AC rms 1 minute between input / output / power;  IEC 688
  • Impulse / SWC : IEC 255-4, 5KV 1.2*50us, IEC255-22-1, 2.5KV ( 1MHz / 400Hz )
  • Operating condition : -5 to 60ºC, 20 to 99% RH non condensing
  • Storage condition : -20 to 70ºC, 20 to 99% RH non condensing
  • Radio screening : RFI degree N complies with VDE 0875
  • Enclosure code : Case IP 50 / terminals IP 30, complies with IEC 529, BS 5490 DIN 40050

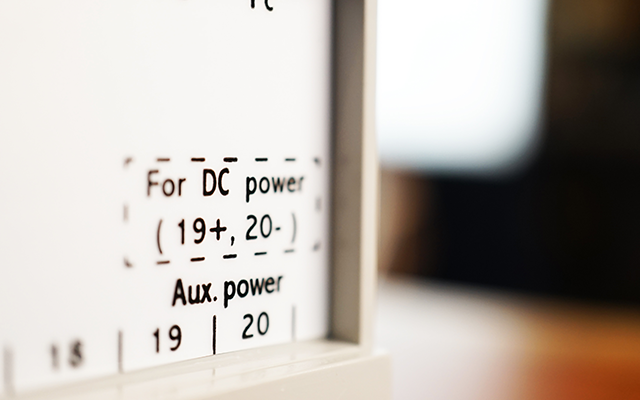

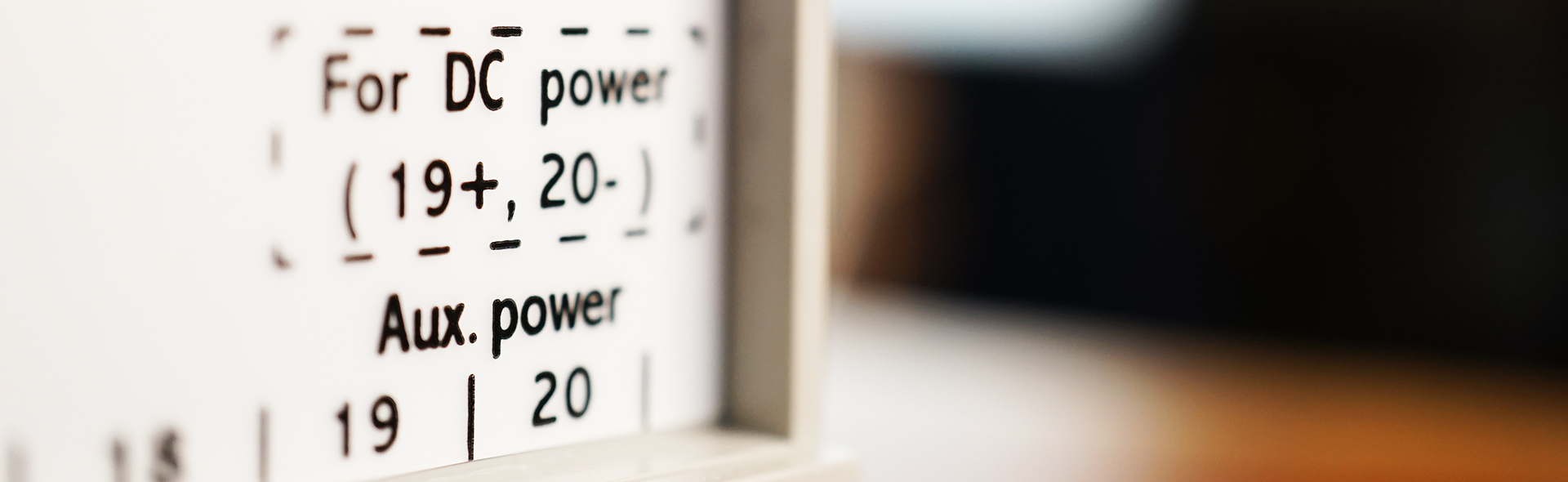

  • Power supply : AC 120V / 240V ± 15%, 50 / 60Hz, < 3.5W

Certifications

  • CE
