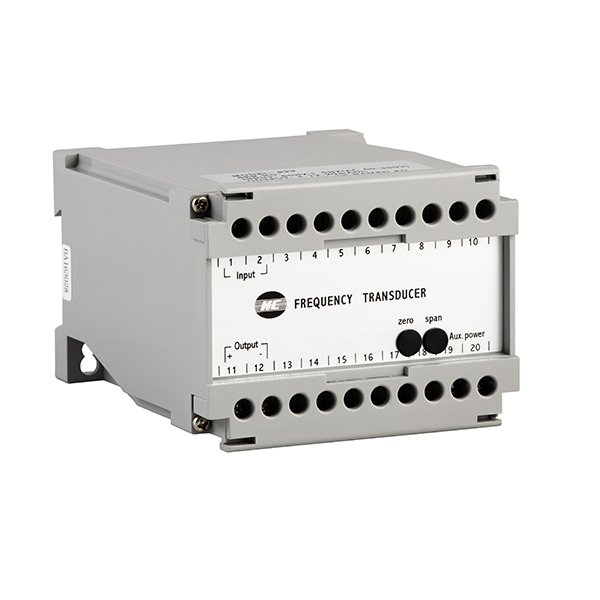

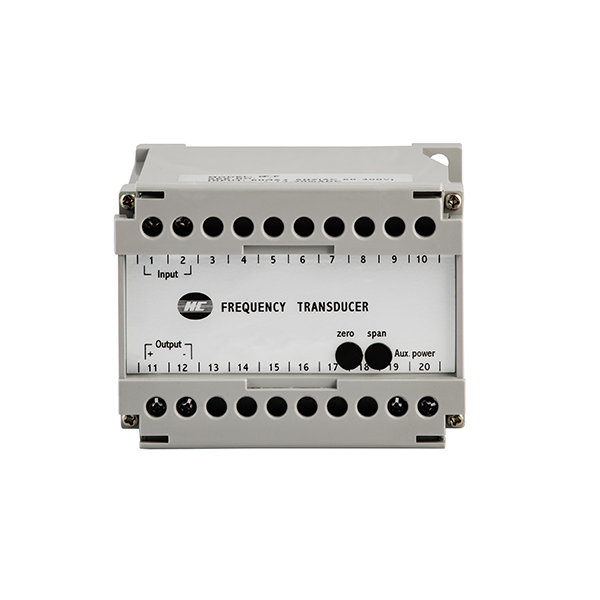

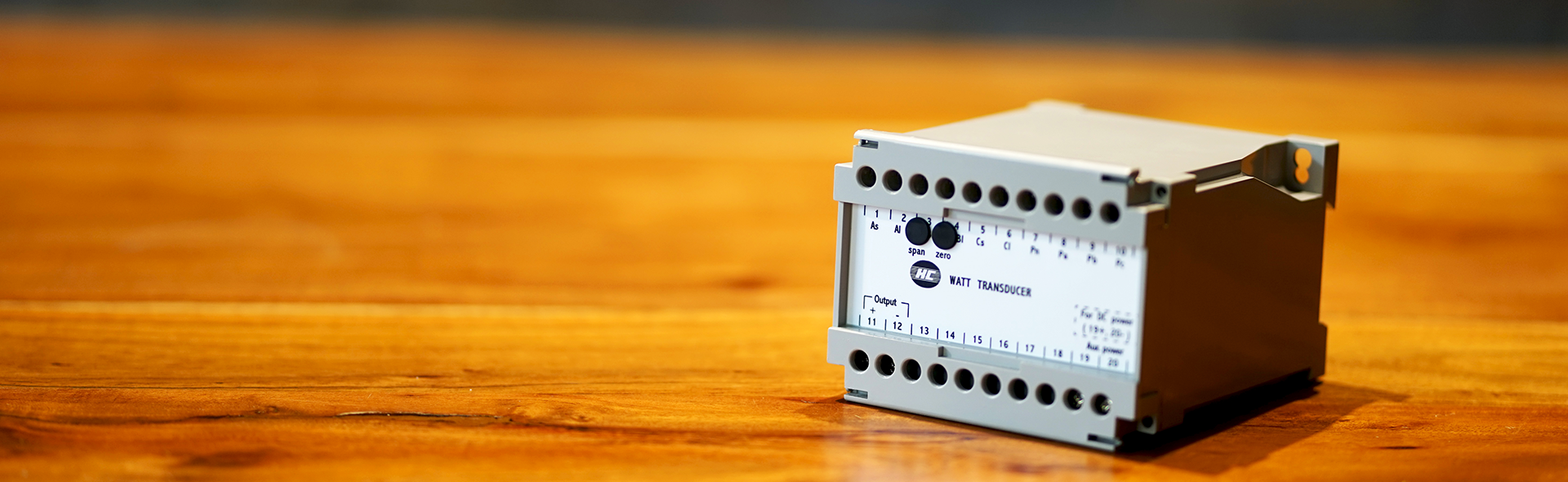

• GP系列是專為一般工業應用而設計的DIN外殼電力傳感器。
• 按照嚴格的IEC 688標準製造。
• 輸入和輸出參數可有多樣的選擇，其他定義的範圍可根據要求提供或作為選項提供。
• 經過驗證的應用電路完全可以確保長期穩定性。
• DIN外殼，體積小巧，節省空間。
• 保護性防觸碰端子和外殼符合VBG4和VDE 0106-100（德國）的要求。
• 高性能和穩定性，溫度變化漂移小於100 ppm/ºC
• 高達5KV（RMS）的高衝擊和浪湧保護，符合IEC 255-4

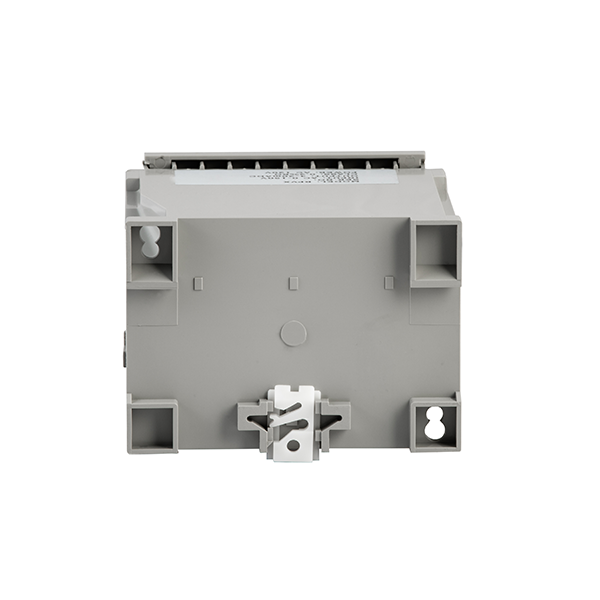

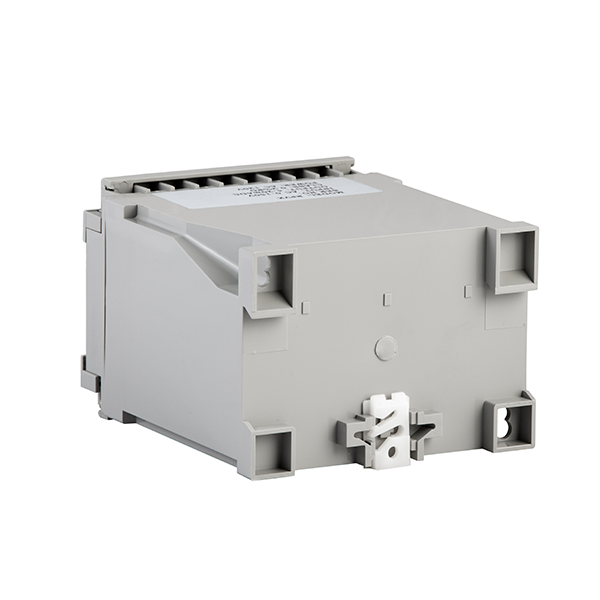

• 通常用於DIN導軌安裝

• Accuracy ( 23 ± 5 ºC ) : 0.05% of named frequency
• Stability : Maximum 100ppm/ºC, less than 0.2% drift per year typically
• Input burden : Voltage 0.2VA typically
• Frequency : 50 / 60 ± band
• Maximum input over : Voltage related input : maximum 2 x rated continuous (50~300V ), maximum 1.5 x rated continuous ( 100~500V )
• Output load :
  • DC current mode : maximum 10V drop
  • DC voltage mode : maximum 5mA drive
• Response time & ripple < 400ms for step change 0-95%, ripple less than 0.5% ro peak-peak
• Magnetic effect < 0.05% change 1M center 100 amp per turn, synchronized with line frequency
• Aux. power effect < 0.002% for per voltage change
• Dielectric strength :
  • 4KV AC rms 1 minute between terminals to case;  IEC 688
  • 2KV AC rms 1 minute between input / output / power;  IEC 688
• Impulse / SWC : IEC 255-4, 5KV 1.2*50us, IEC255-22-1, 2.5KV ( 1MHz / 400Hz )
• Operating condition : -5 to 60ºC, 20 to 99% RH non condensing
• Storage condition : -20 to 70ºC, 20 to 99% RH non condensing
• Radio screening : RFI degree N complies with VDE 0875
• Enclosure code : Case IP 50 / terminals IP 30, complies with IEC 529, BS 5490 DIN 40050

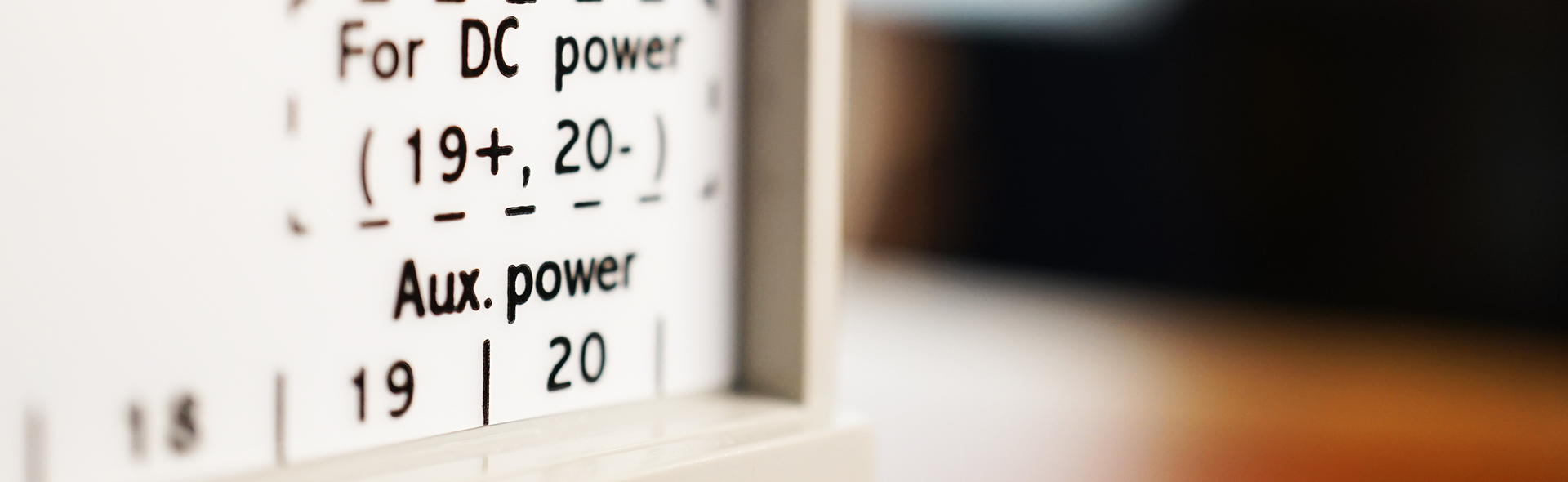

• Power supply : AC 120V / 240V ± 15%, 50 / 60Hz, < 3.5W

認證

• CE
