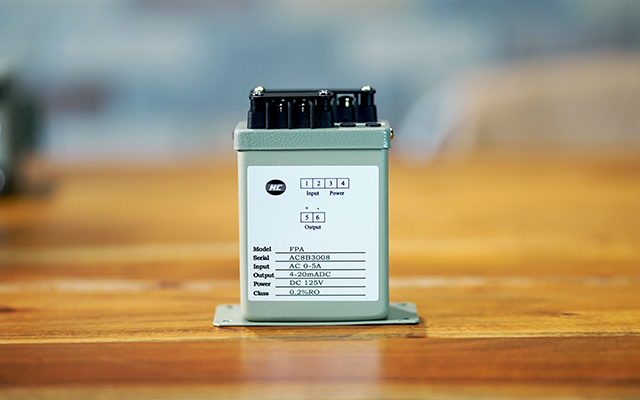

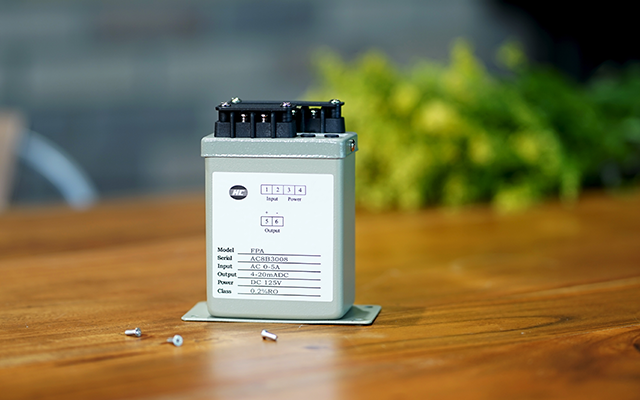

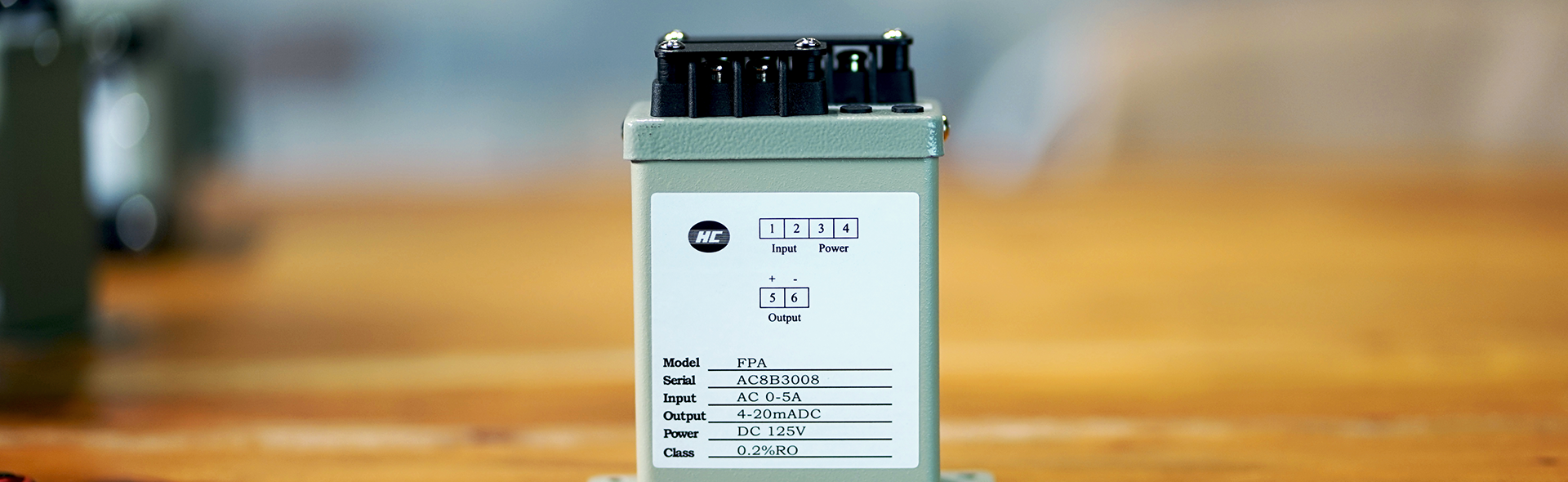

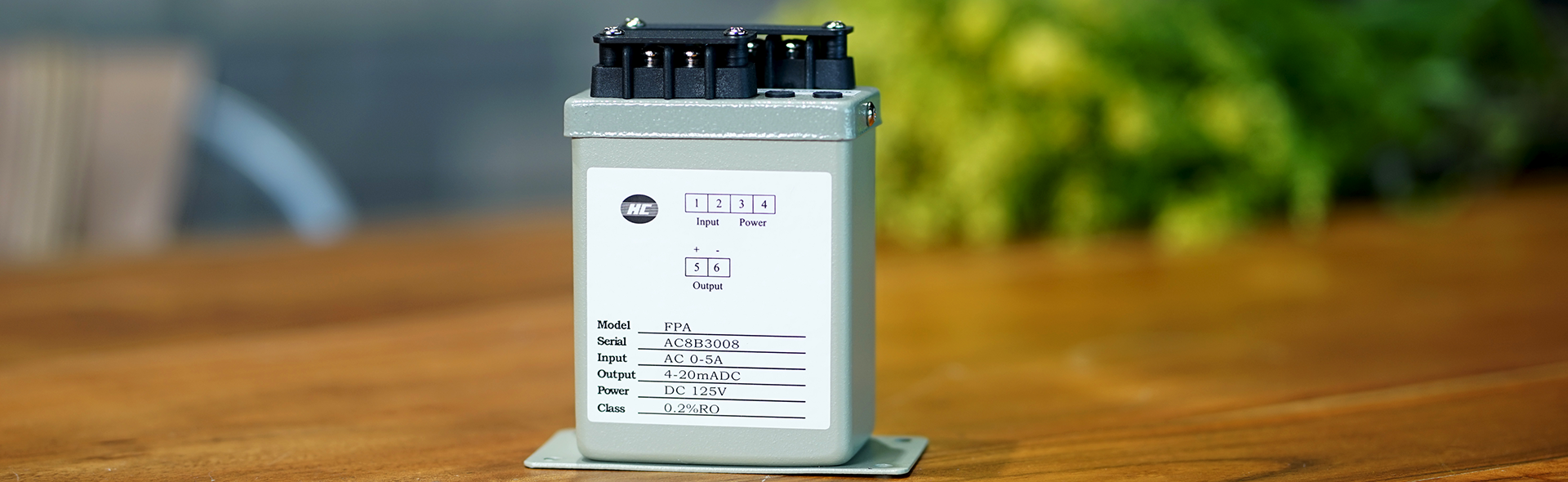

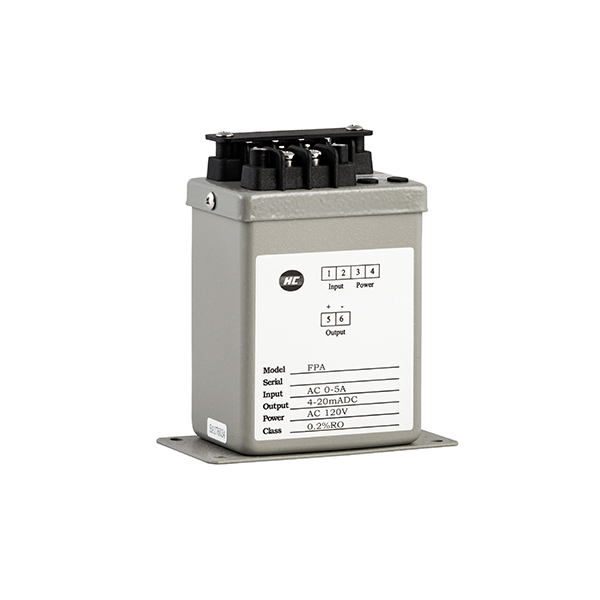

FPA-Metal Case

下載產品諮詢

HC FP為金屬外殼傳感器系列，使用IEC 688/1992-04的方式測量和轉換數值，運用於壁掛式安裝中。
FPA是具有一個輸出的單相平均電流傳感器。

Accuracy ( 23 ± 3 °C ) : 0.2% RO
Maximum output load :
- DC current mode : maximum 10V drop
- DC voltage mode : maximum 5mA drive
Dielectric strength : AC 2KV 1 minute between terminals; AC 2.6KV 1 minute / terminals to case
Surge and impulse test: ANSI C37.90 / 1989, IEC 255-3 (1989) 4 KV 1.2 * 50 us
Maximum input over:
- Current related input
- 1A / 5A 10A
- 4 x rated / continuous 2 x rated / continuous
- 10 x rated / 10 seconds 25 x rated / 1 second
- 50 x rated / 1 second 50 x rated / 0.5 second
- 80 x rated / 0.5 second
Input burden: Current under 0.2 VA
Response time & ripple : <400 ms for step change 0-99% ; ripple less 0.5% ro peak to peak
Frequency : 45 ~ 400 Hz
Stability :
- Temperature range ( 20 to 30°C ), long term stability / year
- Maximum 60 ppm / °C , less 0.2% draft / year typically
Storage condition : Temperature range -25 to 70°C, RH 20 to 95% non condensed
Operating condition : Temperature range -20 to 65°C, RH 0 to 99% non condensed
Magnetic field effect : < 0.01% under 100 ampere turns at 1M center
Power dissipation : Maximum 3.5 VA
