Power Transducer

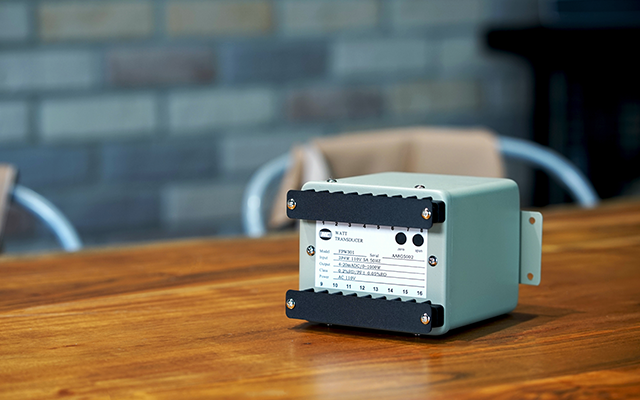

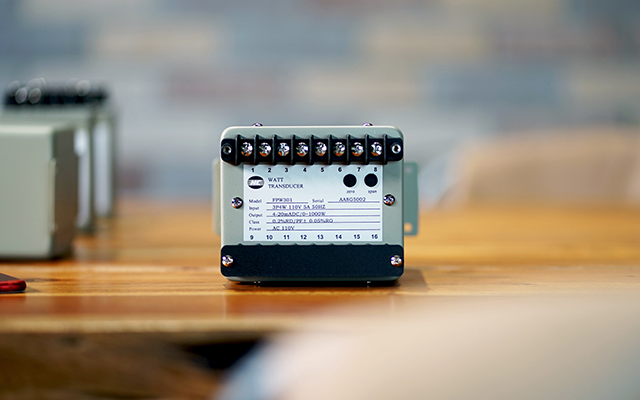

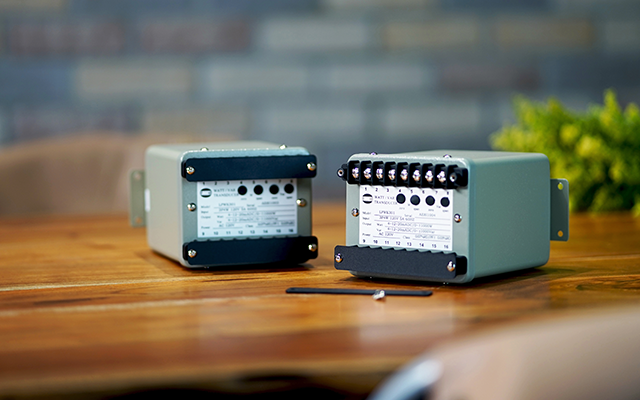

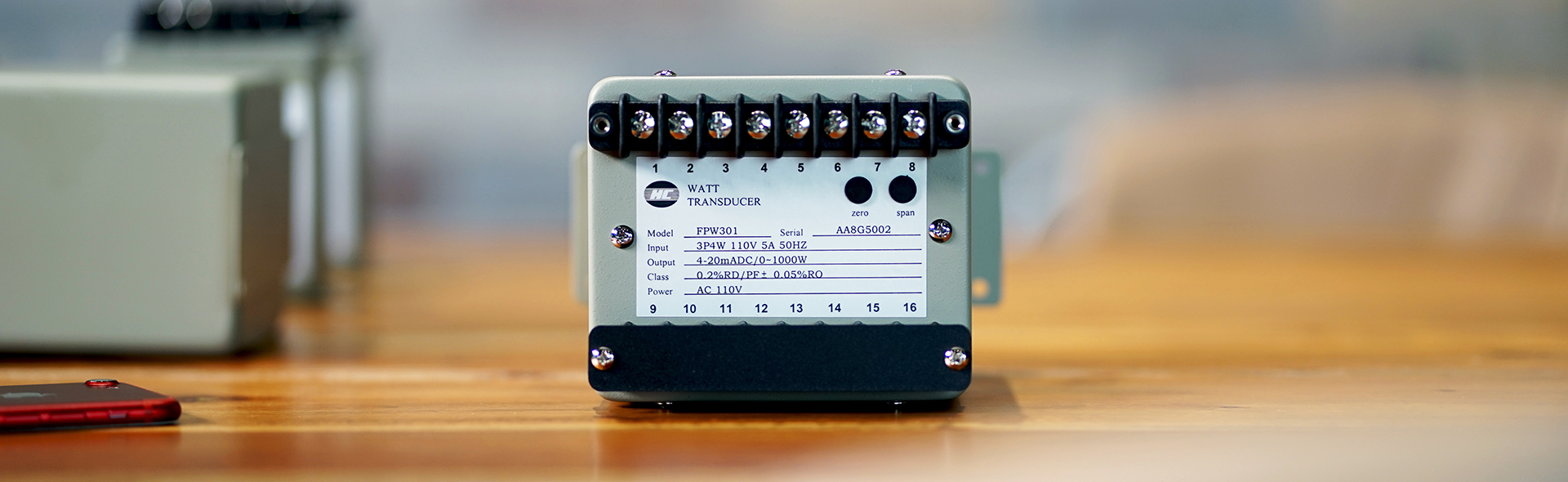

USPR-2-Metal Case

Download Add Inquiry
The HC SP/USP series is designed with a rugged steel casing, which has good resistance to electromagnetic interference and high electrical overload capacity. It is a stable and reliable measurement unit, suitable for field operations and laboratories.

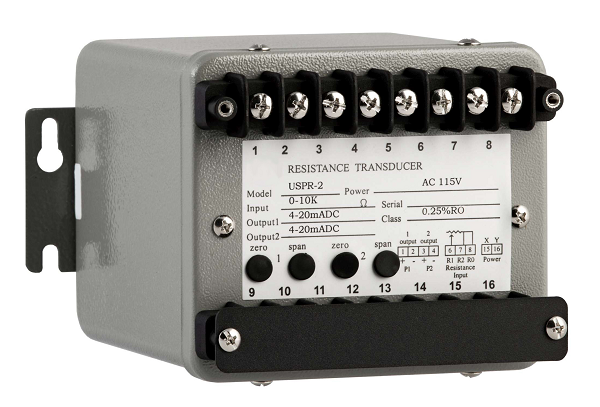

The USPR-2 Resistance transducer has Dual analog output.The USPR offers 50 ~ 20k ohm range seletable.

*The SP series is a traditional analog product, and the USP series is a new digital product. SP series products are partly replaced by USP series, the input and output terminals and functions are the same, and can be directly replaced.

  • Standard output with 0 to 1 mAdc; Option on request
  • Dual isolated output eliminating ground loops effect
  • AC 1800V input / output / isolation meets power series requirement
  • Meets IEEE SWC test
  • Three wires configuration eliminating wire resistance
  • Accuracy : 0.25% RO / 23 ± 3 °C
  • Input ( each element ) :
    • Range : 0 - 50 / 0 - 100 / 0 - 200 / 0 - 1K / 0 - 2K / 0 - 5K / 0 - 10K / 0 - 20Kohm ... range / order on request
    • Configuration : Three wires type
    • Sensing : DC constraint current
    • Protection : Full protection for SURGE, EMI & RFI
  • Output ( isolation with input ; Dual outputs / isolated each other ( 600Vdc )) :
    • Range :
      • 0 - 1 / 0 - 5 / 0 - 10 / 0 - 20 / 4 - 20 / 0 -50 / 10 -50mA
      • 0 - 1 / 0 - 5 / 1 - 5 / 0 - 10 / 2 - 10V
      • Standard calibration 0 - 1mA vs required input range
      • Option calibration under required input range
    • Drive abilities :
      • > 10Kohm for 0 to 1mA standard output
      • > 10V for current output mode
      • > 10mA for voltage output mode
      • Output impedance > 30 Mega ohm
    • Response time < 400 ms from 0 to 99% RO at operating
    • Ripple < 0.5% P-P RO
    • Long term stability < 0.5% RO per year
    • Temperature stability < 0.015% per degree C, from 0 to 55°C
    • Adjustment : Span, zero ±5% ro minimum
    • Protection : No damage ... open or short; full protection from SURGE, EMI, & RFI
    • Magnetic effect < 0.04% at center 400 A-T / M
  • Operation Condition :
    • Temperature Environment : -5 ~ 60 °C
    • Humidity : 20~99% RH non condensed
    • Elevation : Under 3000 meters
    • Magnetic Field : 500 A-T / M
    • Waveform : Sinusoidal
    • Dielectric strength : 4KV AC rms 1 minute between input / output / power / case; fulfills IEC688 standards
    • Impulse Test : ANSI C37.90 / 1989, IEEE 587 / 1983, IEC 255-3 ( 1.2 * 50us), 3KA (8 * 20us)... current only
    • Surge Test (ring wave) : IEEE 587 / 1983 (3KV - 0.5 us / 100 KHz), IEC255-3 (2.5KV - 0.25ms / 1MHz)
    • Power Supply :
      • LO : DC 24 - 60V ± 20%
      • HI : AC 80 - 260V @40 - 70Hz / DC 80 - 330V
      • Dissipation Max. 12VA for AC / 10W for DC
