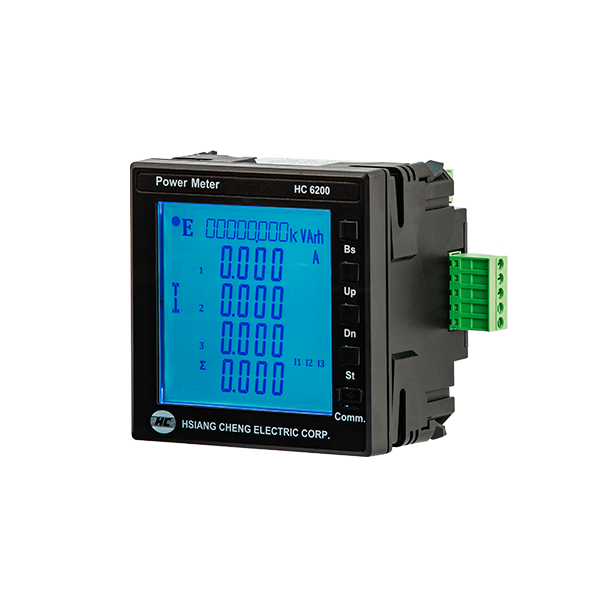

HC 6200 power meter is conceptualized as an intelligent and revolution the to the traditional single function power meters. This HC 6200 is a new compact (96 x 96mm), electronically advanced and programmable rotating display metering device. It is the answer to future generation of electrical metering needs and methodology.
Improved Technical Superiority and Reliability

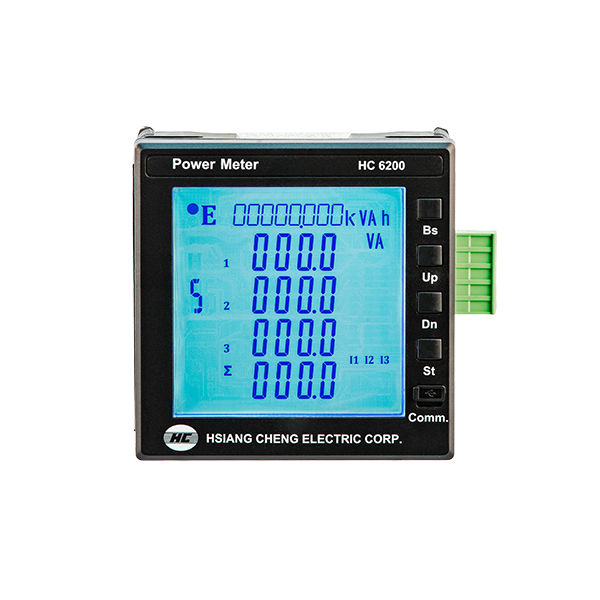

The HC 6200 is built-in with specialties such as overload capabilities, accuracy levels, long term stability, readout dependability etc. To overcome the critiques of traditional digital meters, the power meter HC 6200 is equipped with a large, back-lit LCD display. It can present up to five measurements simultaneously for fast and direct access to information.

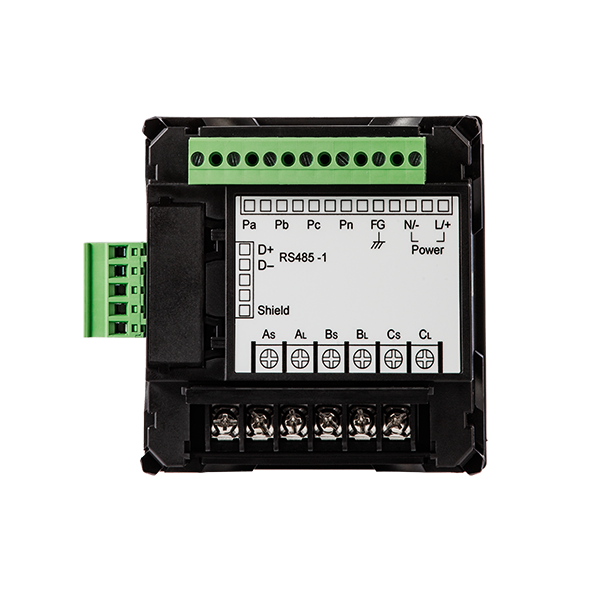

The display of parameters can be manually selected by HC 6200 PCTool, or automatically prioritize the sequentially view within 20 parameters. To meet future metering environments, the power meter HC 6200 is equipped with a serial port RS-485 which allows the connections to an open architecture computerized network, running on PC or data acquisition system and complying with Modbus® protocol. The PCTool provides a simple yet practical solution to energy management in factories and plant, small industries, building services, etc.
Accuracy up to 0.2%
Memory for all setup and energy data " "Harmonic analyze for quality analysis (up to 15th harmonic)
Comprehensive self test diagnostics
Low input burden 0.2VA (5A/120V)
Wide power supply range 80~260V AC / DC
Compact physical configuration
Compatible for DIN&ANSI cutout
2KV RMS input / power isolation "
