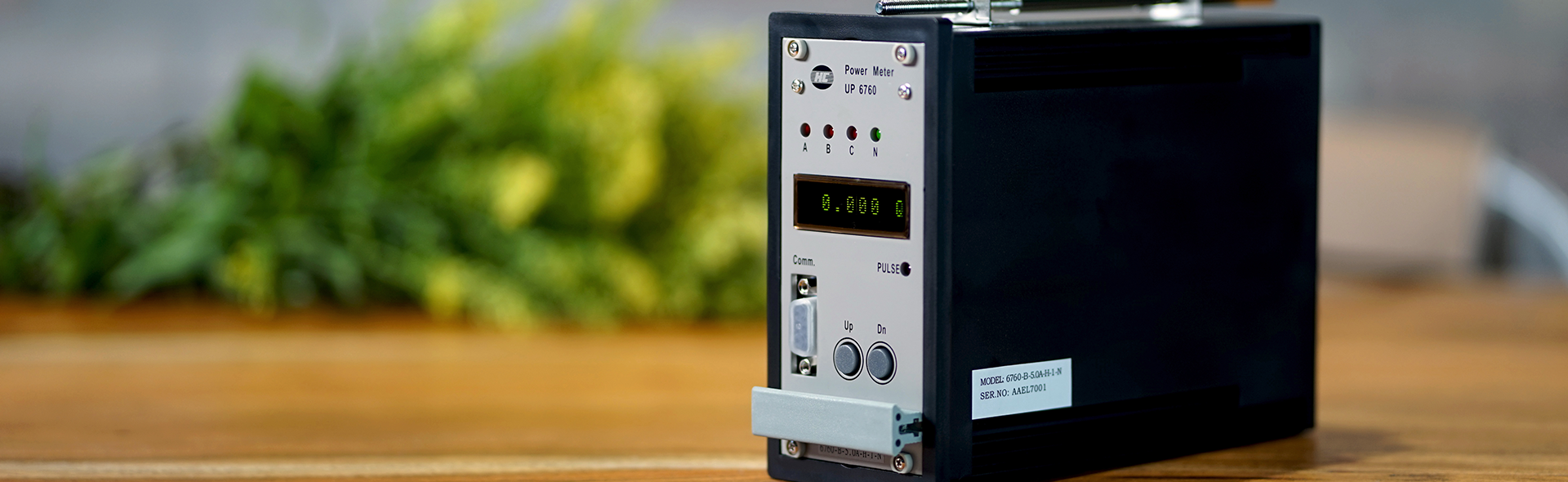

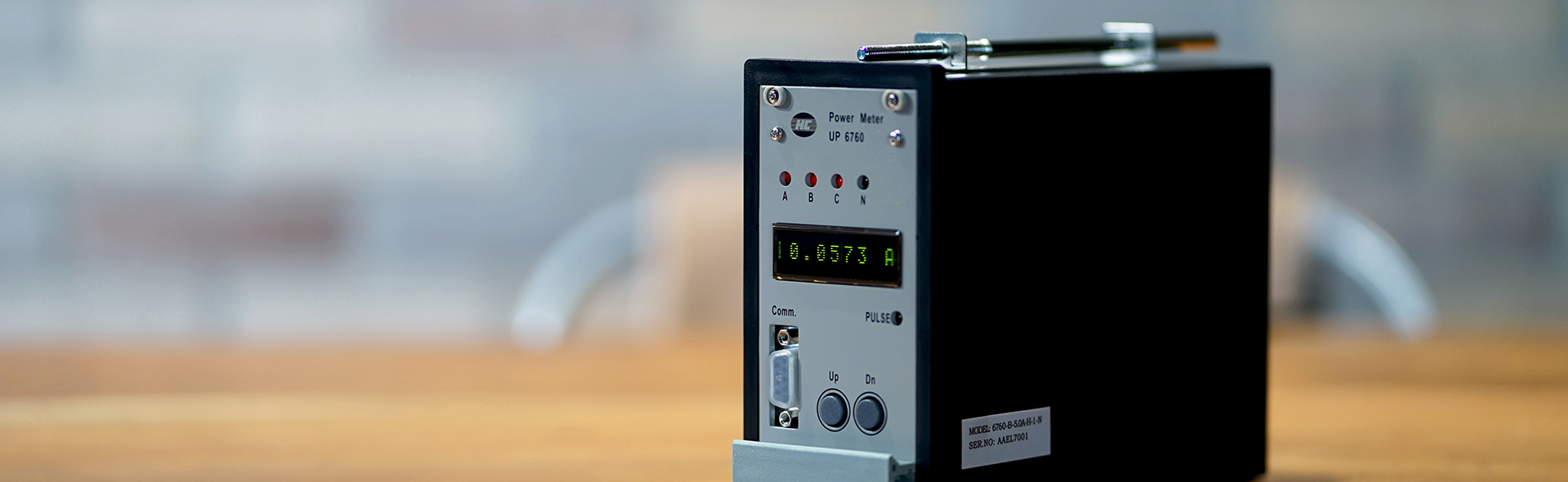

Multifunction Power Quality Meter

UP6760

Download Add Inquiry

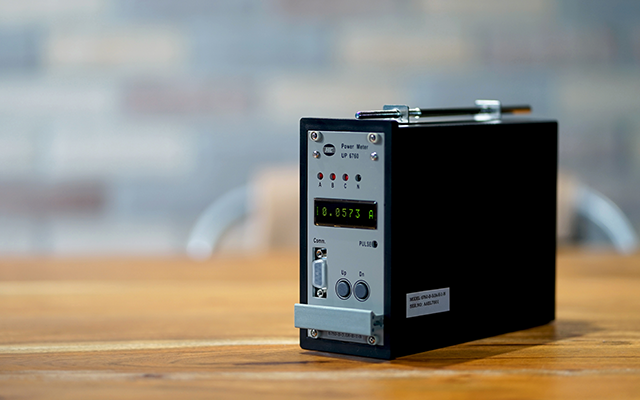

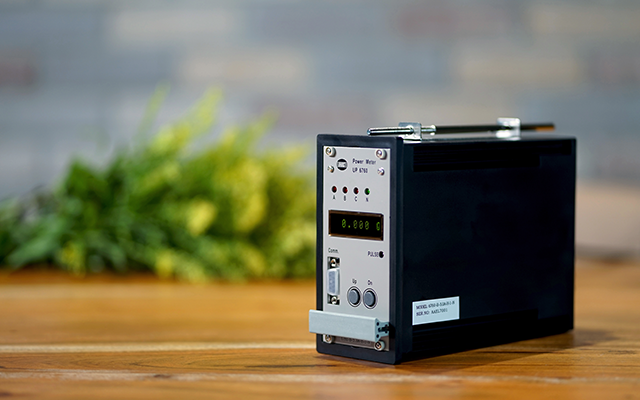

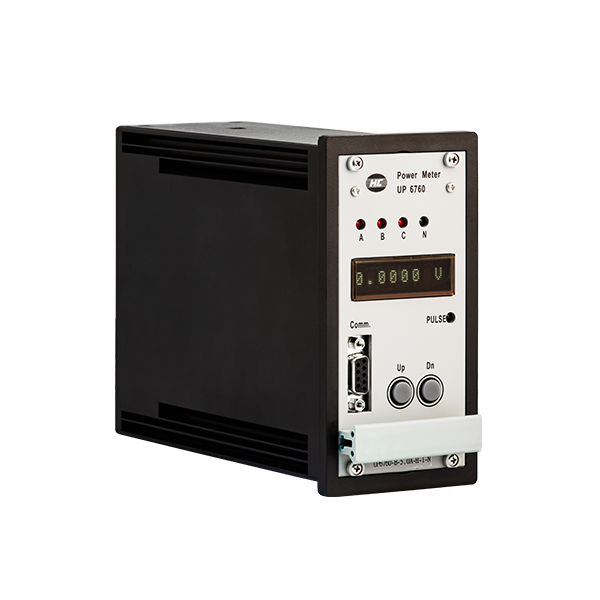

The UP 6760 Digital Power Meter is microprocessor-based instrument intended for power and energy measurement. Additional functionality option to provide control function as synchro check. The UP 6760 is an Intelligent Electronic Device (IED) and stores these measured values and setting parameters in internal registers for communication. With the features, high accuracy, fully modularized & plug-in design, and compact size, UP 6760 is very suitable for Electric Utility Substation Automation application.

The UP 6760 Digital Power Meter is microprocessor-based instrument intended for power and energy measurement. Additional functionality option to provide control function as synchro check. The UP 6760 is an Intelligent Electronic Device (IED) and stores these measured values and setting parameters in internal registers for communication. With the features, high accuracy, fully modularized & plug-in design, and compact size, UP 6760 is very suitable for Electric Utility Substation Automation application.

Features

  • Current input terminal with automatic shorting mechanism
  • Over 90 power and energy parameters
  • Modbus RTU / DNP3.0 protocol
  • 4-AC current inputs, 5A or 1A (specified when ordering)
  • 4-AC voltage inputs, maximum 300V
  • True RMS conversion
  • 32 sample points per cycle
  • Instant maximum and minimum logger
  • Waveform capture
  • Error message display
  • 200 event logs for all measured quantities
  • Build in RTC (real time clock)
  • Field programmable PT / CT ratio
  • Accuracy up to 0.15%
  • Low input burden 0.5VA (5A / 120V)
  • 2 communication Port, RS-485 + RS-232
  • Wide power supply range 80~260V AC / DC
  • Memory for all setup and energy data
  • Comprehensive self test diagnostic
  • “User Map” speed up communication (indirect accessing data)
  • Synchrocheck
  • Fault current detection (option)
  • ◎ 2KV RMS input / output / power isolation
  • ◎ Alphanumeric LED display clear and long-life
  • ◎ Fully modularized & plug-in type
  • ◎ Easy in field maintenance

Accuracy

  • Option=N
  • 0.15%fs for V x 3
  • 0.15%fs for A x 3
  • 0.25%fs for Watts
  • 0.25%fs for Vars
  • 0.25%fs for VA
  • 0.25%fs for PF
  • *0.25%rd/PF for WH
  • *0.25%rd/PF for VarH
  • 0.5%fs for A0
  • 0.03%rd for Hz
  • Option=A
  • 0.25%fs for V x 3
  • 0.25%fs for A x 3
  • 0.25%fs for Watts
  • 0.25%fs for Vars
  • 0.5%fs for VA
  • 0.25%fs for PF
  • **0.5%rd for WH
  • **0.5%rd for VarH
  • 0.25%fs for A0
  • 1%fs for AF x3, AF0
  • 0.03%rd for Hz
  • * Accuracy performance range for WH/VarH, PF ≧ 0.5 (-10 to 50℃)
  • PF = Cosθ for WH ; PF = Sinθ for VarH
  • Voltage ≧ 60V ; Current ≧ 20% of rating
  • *** 0.2° ± SIN -1 (0.02 x PF)
  • ** Accuracy performance range for WH/VarH, PF ≧ 0.5 (-10 to 50℃)
  •  PF = Cosθ for WH ; PF = Sinθ for VarH
  •  Voltage ≧ 60V ; Current ≧ 10% of rating

Certifications

  • CE
