UPPTR-2

下載產品諮詢

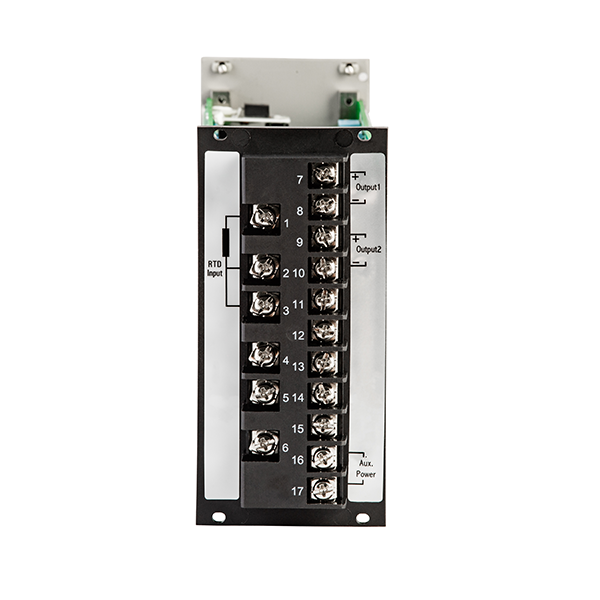

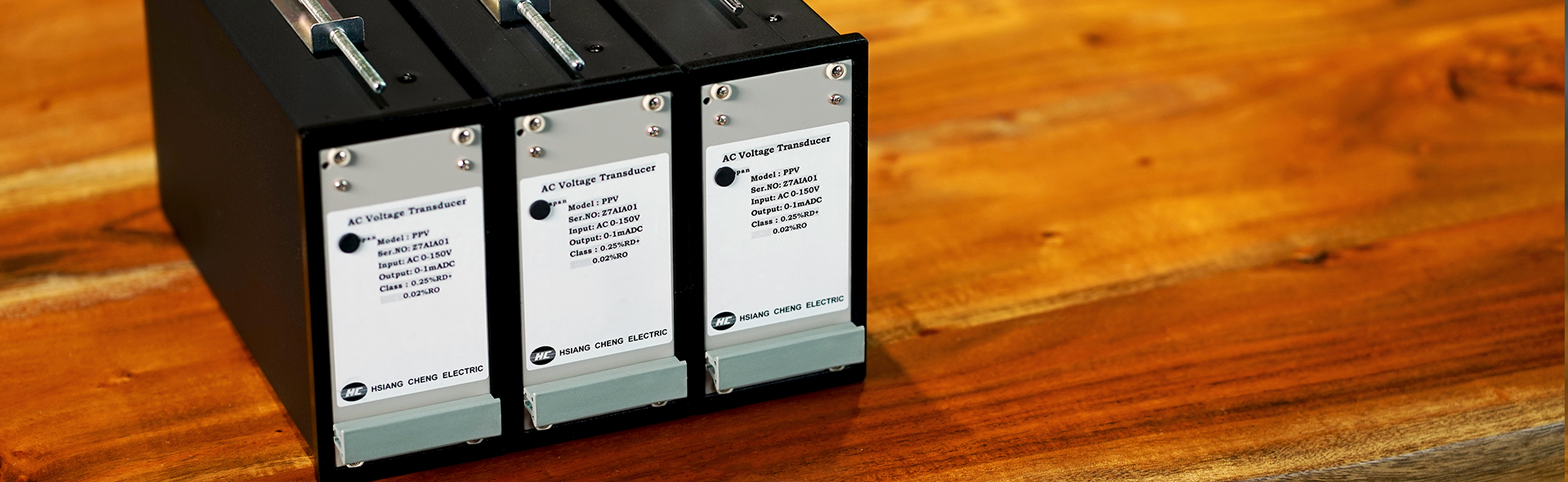

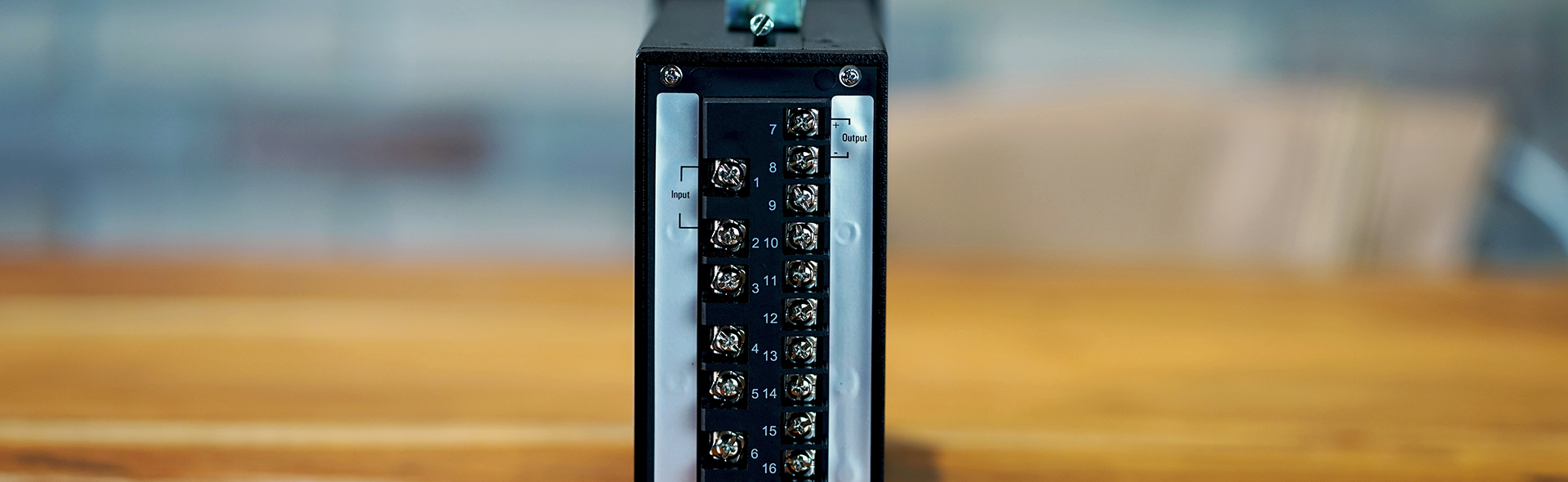

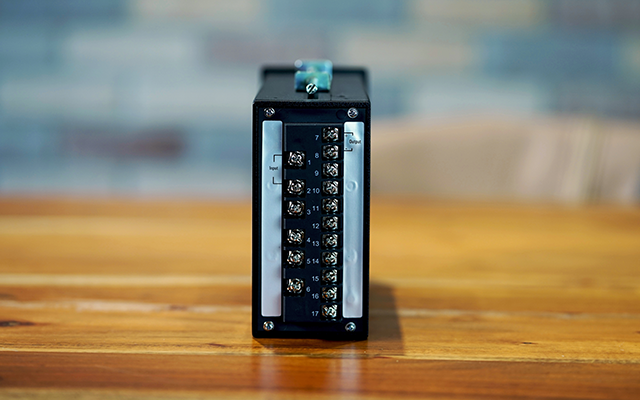

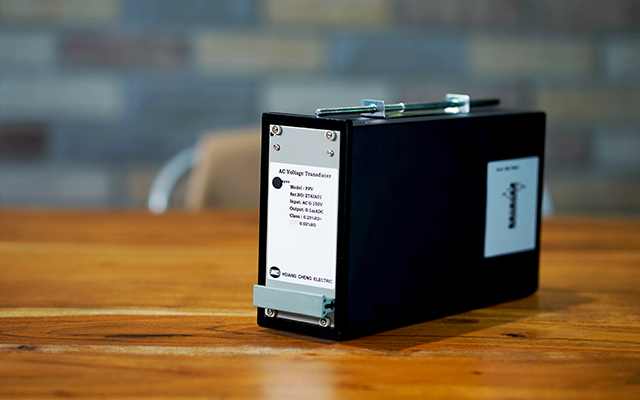

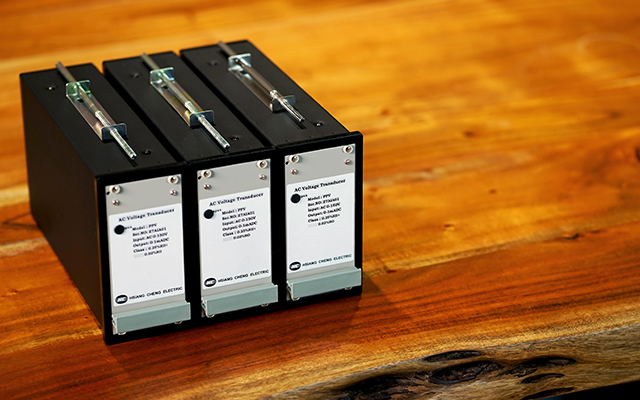

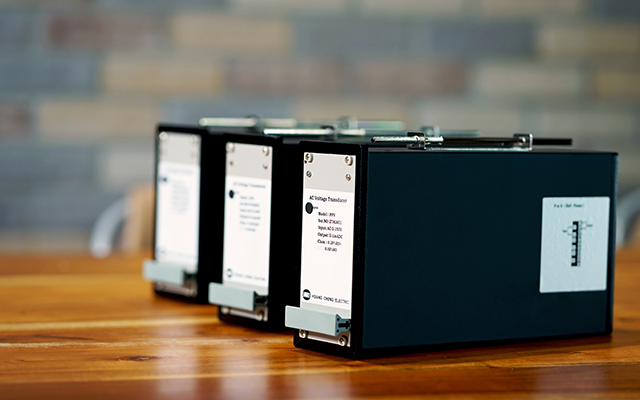

HC PP/UPP系列轉換器為插拔式設計，可根據用戶應用設置在標準DIN 19英寸機架安裝或獨立的單元外殼中。每個插入單元均設計並分為兩部分：輸入端子模塊和轉換模塊。

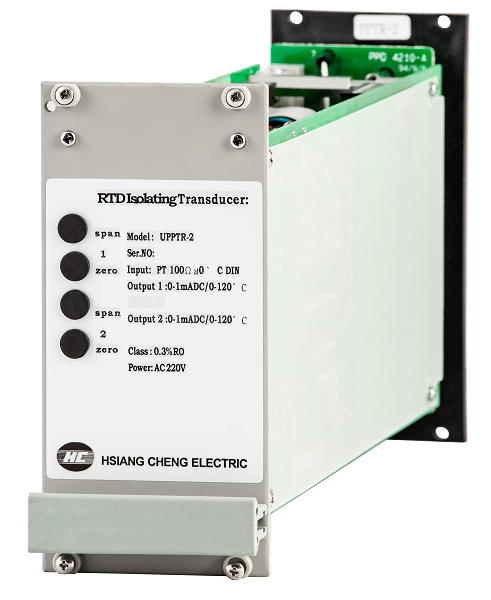

UPPTR-2為擁有兩組隔離輸出的電阻溫度隔離轉換器。
符合IEC 688的測量和轉換。 VDE 0110對電源系統的適應性以及VDE 3540的測量可靠性。

*PP系列為傳統類比產品，UPP系列為新數位化產品。PP系列產品部份由UPP系列替代，輸入輸出端子及功能皆相同，可以直接替代。

線性輸出
現場 - 具有可切換輸入和輸出範圍的各種模式
可變輸入RTD模組
精確度0.3％
高介電強度，可達4kV於輸入/輸出/電源/外殼，兩兩之間
可用的標准或自定義校準

Accuracy ( 23 ± 5 ℃ ) : 0.3% RO
Linearity & repeatability : 0.1% typical
Temperature stability : Less 0.015% ro per degree C
Configuration :
- Three wires connection / applicable for two wire connection
- Excitation - 5mAdc constant current source
- Selectable input module
- Linear output vs input temperature
Field rangeability :
- Selectable output mode for voltage or current mode
- Switchable of input ranges & output ranges
- Switchable AC power for 110V or 220V
- Selectable C / F calibration
Effect of wire resistance :
- Automatically eliminated for 3 wire connections
- Offset recalibration required for 2 wire connections
Input break detection :
- Selectable Hi-set or Lo-set
- Hi-set over 110% of rated output
- Lo-set less than 0.5% of rated output
Power effect : Less than 0.003% per volt change
Output drive capability : Maximum 10mA for voltage mode, maximum 10V for current mode
Response time & ripple : Less 400ms typically, ripple less 0.15% rms of span
Common mode rejection : > 80db 50 / 60Hz
Dielectric strength : 4KV AC between input / output / power / case
Impulse & surge test : IEEE 587 / 1983 or IEC 255-4
Storage condition: Temperature range -25 to +70℃, RH 20 to 95% non condensed
Operating condition: Temperature range -20 to +65℃, RH 20 to 95% non condensed
Power supply:
- LO : DC 24 - 60V ± 20%
- HI : AC 80 - 260V @40 - 70Hz / DC 80 - 330V
- Dissipation Max. 12VA for AC / 10W for DC
Dimension : WxHxD: 12T (60.6mm) x 3U (128.5mm) x 238mm
